REAR SPEAKER REMOVAL/INSTALLATION

id092000802400

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

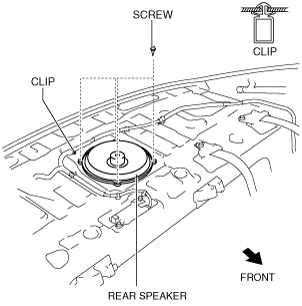

3.  Remove the clip.

am6zzw00001607

4.  Remove the screws.

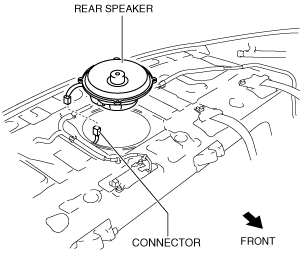

5.  Remove the rear speaker.

am6zzw00001608

6.  Disconnect the connector.

7.  Install in the reverse order of removal.
