NOISE FILTER REMOVAL/INSTALLATION

id092000806400

Brake Light Noise Filter

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

am6zzw00003202

1	Connector
2	Clip
3	Brake light noise filter

3.  Install in the reverse order of removal.

Rear Window Defroster Noise Filter

4SD

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Rear side seat back (See REAR SIDE SEAT BACK REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD])

(5)  Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

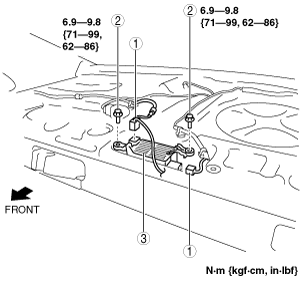

am6zzw00000360

1	Connector
2	Bolt
3	Rear window defroster noise filter

4.  Install in the reverse order of removal.

5HB

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

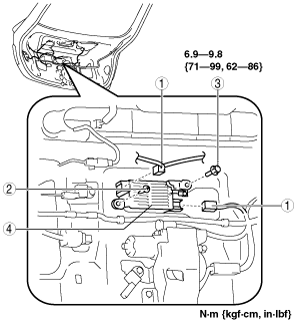

am6zzw00000361

1	Connector
2	Screw
3	Bolt
4	Rear window defroster noise filter

4.  Install in the reverse order of removal.
