REAR VEHICLE MONITORING CONTROL MODULE REMOVAL/INSTALLATION

id092200165100

Caution

•  When replacing the rear vehicle monitoring control module (RH), perform the rear vehicle monitoring configuration.

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

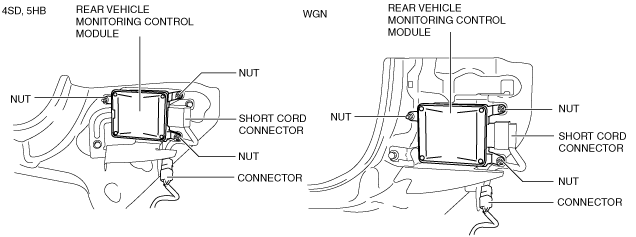

4.  Disconnect the connector.

am6zzw00004231

5.  Disconnect the short cord connector.

6.  Remove the nuts.

7.  Remove the rear vehicle monitoring control module.

8.  Install in the reverse order of removal.

9.  When replacing the rear vehicle monitoring control module (RH), perform the rear vehicle monitoring configuration. (See REAR VEHICLE MONITORING CONTROL MODULE CONFIGURATION.)

10.  Perform radar aiming. (See REAR VEHICLE MONITORING RADAR AIMING.)
