OIL PAN UPPER BLOCK REMOVAL/INSTALLATION [13B-MSP]

id0111e4802000

Warning

•  Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.

•  A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.

•  Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [13B-MSP].)

3.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP].)

4.  Drain the engine oil. (See ENGINE OIL REPLACEMENT [13B-MSP].)

5.  Remove the under cover. (See OIL FILTER REPLACEMENT [13B-MSP].)

6.  Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [13B-MSP].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

9.  Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT [13B-MSP].)

10.  Start the engine and confirm that there is no oil leakage.

•  If there is oil leakage, repair or replace the applicable part.

11.  Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION [13B-MSP].)

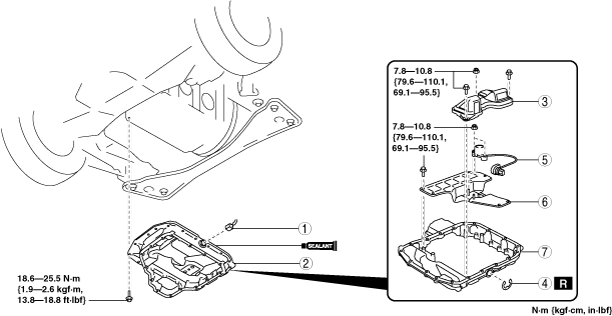

ar8wzw00000751

1	Connector
2	Oil pan upper block component (See Oil Pan Upper Block Component Removal Note.) (See Oil Pan Upper Block Component Installation Note.)
3	Baffle plate
4	Clip
5	Oil level switch
6	Baffle plate
7	Oil pan upper block

Oil Pan Upper Block Component Removal Note

Caution

•  Be careful not to damage the installation surface of the housing and oil pan upper block.

1.  Remove the oil pan upper block component using a separator tool.

am6zzw00002303

Oil Pan Upper Block Component Installation Note

Caution

•  Apply the silicon sealant in a single, unbroken line around the whole perimeter.

•  Install the oil pan upper block within 5 min after applying the silicone sealant.

•  Using bolts with the old seal adhering could cause cracks in the housing.

am6zzw00002304

1.  Completely clean and remove any oil, dirt, sealant or other foreign material that may be adhering to the oil pan upper block and housing.

2.  When reusing the oil pan upper block installation bolts, clean any old sealant from the bolts.

3.  Apply silicone sealant to the areas as shown in the figure.

ar8wzw00000752

Caution

•  Apply silicone sealant to the outer circumference of the bolt hole at locations A shown in the figure.

4.  Install the oil pan upper block component to the housing.

5.  Tighten the oil pan upper block installation bolts.
