DSC HU/CM INSPECTION

id041500801100

1. Disconnect the DSC HU/CM connector. (See DSC HU/CM REMOVAL/INSTALLATION.)

2. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [13B-MSP].)

3. Attach the tester lead to the DSC HU/CM harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

Standard (Reference Value)

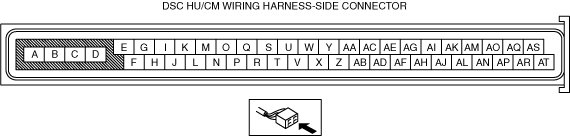

ar8uuw00001252

Terminal

Signal name

Connected to

Measured item

Measured terminal (measured condition)

Standard

Inspection item(s)

A

Ground

(ABS motor)

Ground point

Continuity

A—ground point

Continuity detected

•  Wiring harness (A—ground point)

B

Power supply

(ABS motor operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness (B—battery)

C

Power supply

(solenoid operation)

Battery

Voltage

Under any condition

B+

•  Wiring harness (C—battery)

D

Ground

(DSC system)

Ground point

Continuity

D—ground point

Continuity detected

•  Wiring harness (D—ground point)

E

LF wheel-speed sensor (ground)

LF ABS wheel-speed sensor

Continuity

E—LF ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (E—LF ABS wheel-speed sensor connector terminal B)

F

LF wheel-speed sensor (single)

LF ABS wheel-speed sensor

Continuity

F—LF ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (F—LF ABS wheel-speed sensor connector terminal A)

G

LR wheel-speed sensor (signal)

LR ABS wheel-speed sensor

Continuity

G—LR ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (G—LR ABS wheel-speed sensor connector terminal B)

H

LR wheel-speed sensor (ground)

LR ABS wheel-speed sensor

Continuity

H—LR ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (H—LR ABS wheel-speed sensor connector terminal A)

I

RR wheel-speed (signal)

RR ABS wheel-speed sensor

Continuity

I—RR ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (I—RR ABS wheel-speed sensor connector terminal B)

J

Power supply

(system)

Ignition switch

Voltage

Ignition switch at ON

B+

•  Wiring harness (J—ignition switch)

Ignition switch is off.

1 V or less

—

K

—

—

—

—

—

—

L

RR wheel-speed sensor (ground)

RR ABS wheel-speed sensor

Continuity

L—RR ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (L—RR ABS wheel-speed sensor connector terminal A)

M

RF wheel-speed sensor (signal)

RF ABS wheel-speed sensor

Continuity

M—RF ABS wheel-speed sensor connector terminal A

Continuity detected

•  Wiring harness (M—RF ABS wheel-speed sensor connector terminal A)

N

Brake switch

Brake switch

Voltage

N—ground point

(Brake pedal

depressed)

B+

•  Wiring harness (N—brake switch)

•  Brake switch

N—ground point

(Brake pedal not depressed)

1 V or less

—

O

RF wheel-speed sensor (ground)

RF ABS wheel-speed sensor

Continuity

O—RF ABS wheel-speed sensor connector terminal B

Continuity detected

•  Wiring harness (O—RF ABS wheel-speed sensor connector terminal B)

P

DSC OFF switch

DSC OFF switch

Continuity

P—DSC OFF switch connector terminal C

Continuity detected

•  Wiring harness (P—DSC OFF switch connector terminal C)

Q

—

—

—

—

—

—

R

—

—

—

—

—

—

S

—

—

—

—

—

—

T

Vehicle speed output

Audio unit

Continuity

T—audio unit

Continuity detected

•  Wiring harness (T—audio unit)

Car-navigation unit

T—car-navigation unit

•  Wiring harness (T—car-navigation unit)

Position memory control module

T—position memory control module

•  Wiring harness (T—position memory control module)

Auto light/wiper control module

T—auto light/wiper control module

•  Wiring harness (T—auto light/wiper control module)

Climate control unit

T—climate control unit

•  Wiring harness (T—climate control unit)

Auto leveling control module

T—auto leveling control module

•  Wiring harness (T—auto leveling control module)

U

—

—

—

—

—

—

V

—

—

—

—

—

—

W

CAN_L

DLC-2 (CAN_L)

Continuity

W—DLC-2 terminal CAN_L

Continuity detected

•  Wiring harness (W—DLC-2 terminal CAN_L)

X

CAN_H

DLC-2 (CAN_H)

Continuity

X—DLC-2 terminal CAN_H

Continuity detected

•  Wiring harness (X—DLC-2 terminal CAN_H)

Y

—

—

—

—

—

—

Z

—

—

—

—

—

—

AA

—

—

—

—

—

—

AB

—

—

—

—

—

—

AC

—

—

—

—

—

—

AD

—

—

—

—

—

—

AE

—

—

—

—

—

—

AF

—

—

—

—

—

—

AG

—

—

—

—

—

—

AH

—

—

—

—

—

—

AI

—

—

—

—

—

—

AJ

—

—

—

—

—

—

AK

—

—

—

—

—

—

AL

—

—

—

—

—

—

AM

—

—

—

—

—

—

AN

—

—

—

—

—

—

AO

—

—

—

—

—

—

AP

—

—

—

—

—

—

AQ

—

—

—

—

—

—

AR

CAN2_H

Combined sensor

Continuity

AR—combined sensor connector terminal C

Continuity detected

•  Wiring harness (AR—combined sensor connector terminal C)

AS

CAN2_L

Combined sensor

Continuity

AS—combined sensor connector terminal B

Continuity detected

•  Wiring harness (AS—combined sensor connector terminal B)

AT

—

—

—

—

—

—

Terminal	Signal name	Connected to	Measured item	Measured terminal (measured condition)	Standard	Inspection item(s)
A	Ground (ABS motor)	Ground point	Continuity	A—ground point	Continuity detected	• Wiring harness (A—ground point)
B	Power supply (ABS motor operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (B—battery)
C	Power supply (solenoid operation)	Battery	Voltage	Under any condition	B+	• Wiring harness (C—battery)
D	Ground (DSC system)	Ground point	Continuity	D—ground point	Continuity detected	• Wiring harness (D—ground point)
E	LF wheel-speed sensor (ground)	LF ABS wheel-speed sensor	Continuity	E—LF ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (E—LF ABS wheel-speed sensor connector terminal B)
F	LF wheel-speed sensor (single)	LF ABS wheel-speed sensor	Continuity	F—LF ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (F—LF ABS wheel-speed sensor connector terminal A)
G	LR wheel-speed sensor (signal)	LR ABS wheel-speed sensor	Continuity	G—LR ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (G—LR ABS wheel-speed sensor connector terminal B)
H	LR wheel-speed sensor (ground)	LR ABS wheel-speed sensor	Continuity	H—LR ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (H—LR ABS wheel-speed sensor connector terminal A)
I	RR wheel-speed (signal)	RR ABS wheel-speed sensor	Continuity	I—RR ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (I—RR ABS wheel-speed sensor connector terminal B)
J	Power supply (system)	Ignition switch	Voltage	Ignition switch at ON	B+	• Wiring harness (J—ignition switch)
J	Power supply (system)	Ignition switch	Voltage	Ignition switch is off.	1 V or less	—
K	—	—	—	—	—	—
L	RR wheel-speed sensor (ground)	RR ABS wheel-speed sensor	Continuity	L—RR ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (L—RR ABS wheel-speed sensor connector terminal A)
M	RF wheel-speed sensor (signal)	RF ABS wheel-speed sensor	Continuity	M—RF ABS wheel-speed sensor connector terminal A	Continuity detected	• Wiring harness (M—RF ABS wheel-speed sensor connector terminal A)
N	Brake switch	Brake switch	Voltage	N—ground point (Brake pedal depressed)	B+	• Wiring harness (N—brake switch) • Brake switch
N	Brake switch	Brake switch	Voltage	N—ground point (Brake pedal not depressed)	1 V or less	—
O	RF wheel-speed sensor (ground)	RF ABS wheel-speed sensor	Continuity	O—RF ABS wheel-speed sensor connector terminal B	Continuity detected	• Wiring harness (O—RF ABS wheel-speed sensor connector terminal B)
P	DSC OFF switch	DSC OFF switch	Continuity	P—DSC OFF switch connector terminal C	Continuity detected	• Wiring harness (P—DSC OFF switch connector terminal C)
Q	—	—	—	—	—	—
R	—	—	—	—	—	—
S	—	—	—	—	—	—
T	Vehicle speed output	Audio unit	Continuity	T—audio unit	Continuity detected	• Wiring harness (T—audio unit)
		Car-navigation unit		T—car-navigation unit		• Wiring harness (T—car-navigation unit)
		Position memory control module		T—position memory control module		• Wiring harness (T—position memory control module)
		Auto light/wiper control module		T—auto light/wiper control module		• Wiring harness (T—auto light/wiper control module)
		Climate control unit		T—climate control unit		• Wiring harness (T—climate control unit)
		Auto leveling control module		T—auto leveling control module		• Wiring harness (T—auto leveling control module)
U	—	—	—	—	—	—
V	—	—	—	—	—	—
W	CAN_L	DLC-2 (CAN_L)	Continuity	W—DLC-2 terminal CAN_L	Continuity detected	• Wiring harness (W—DLC-2 terminal CAN_L)
X	CAN_H	DLC-2 (CAN_H)	Continuity	X—DLC-2 terminal CAN_H	Continuity detected	• Wiring harness (X—DLC-2 terminal CAN_H)
Y	—	—	—	—	—	—
Z	—	—	—	—	—	—
AA	—	—	—	—	—	—
AB	—	—	—	—	—	—
AC	—	—	—	—	—	—
AD	—	—	—	—	—	—
AE	—	—	—	—	—	—
AF	—	—	—	—	—	—
AG	—	—	—	—	—	—
AH	—	—	—	—	—	—
AI	—	—	—	—	—	—
AJ	—	—	—	—	—	—
AK	—	—	—	—	—	—
AL	—	—	—	—	—	—
AM	—	—	—	—	—	—
AN	—	—	—	—	—	—
AO	—	—	—	—	—	—
AP	—	—	—	—	—	—
AQ	—	—	—	—	—	—
AR	CAN2_H	Combined sensor	Continuity	AR—combined sensor connector terminal C	Continuity detected	• Wiring harness (AR—combined sensor connector terminal C)
AS	CAN2_L	Combined sensor	Continuity	AS—combined sensor connector terminal B	Continuity detected	• Wiring harness (AS—combined sensor connector terminal B)
AT	—	—	—	—	—	—
