AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [SJ6A-EL]

id051311249200

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

2.  Remove the battery cover.

3.  Disconnect the negative battery cable.

4.  Drain the ATF. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].)

5.  Remove in the order indicated in the table.

6.  Install in the reverse order of removal.

7.  Add ATF and, with the engine idling, inspect the ATF level and inspect for leakage. (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT [SJ6A-EL].) (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [SJ6A-EL].)

8.  Inspect selector lever operation. (See SELECTOR LEVER INSPECTION.)

9.  Inspect for leakage of ATF from all connecting points.

10.  Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [SJ6A-EL].)

Service item

Test item

Line pressure test

Stall speed test

Time lag test
Automatic transmission replacement
×


Control valve body replacement
×
×
×
Torque converter replacement
×
×


11.  Perform the road test. (See ROAD TEST [SJ6A-EL].)

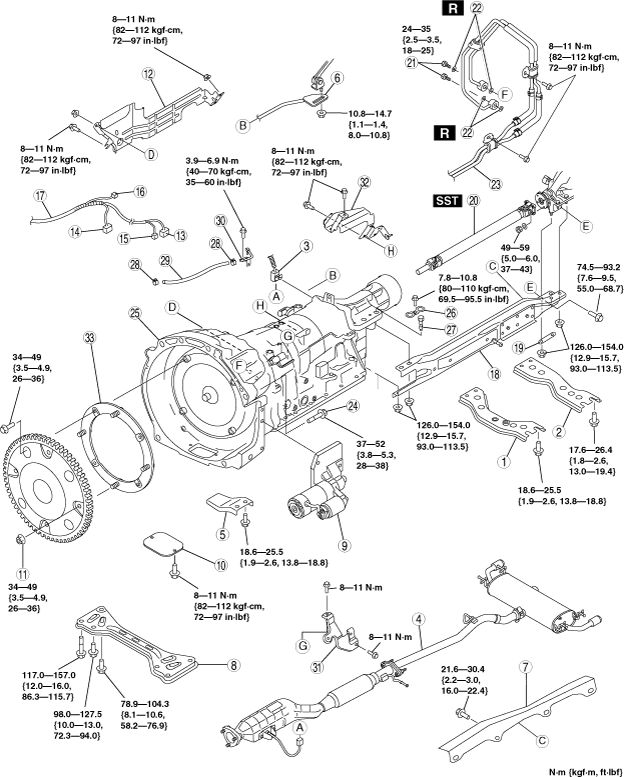

ar8wzw00000185

1
Front tunnel member
2
Rear tunnel member
3
Heated oxygen sensor connector
4
Catalytic converter, middle pipe, main silencer
(See EXHAUST SYSTEM REMOVAL/INSTALLATION [13B-MSP].)
5
Exhaust manifold stay
6
Manual shaft lever component
(See Manual Shaft Lever Component Removal Note.)
(See Manual Shaft Lever Component Installation Note.)
7
Heat insulator
8
Transverse member
9
Starter
(See STARTER REMOVAL/INSTALLATION [13B-MSP].)
10
Under cover
11
Torque converter installation nuts
(See Torque Converter Installation Nuts Removal Note.)
(See Torque Converter Installation Nuts Installation Note.)
12
Insulator
13
TR switch connector
14
Solenoid valve connector
15
VSS connector
16
Turbine sensor connector
17
Wiring harness
18
Power plant frame
(See Power Plant Frame Removal Note.)
(See Power Plant Frame Installation Note.)
19
Plate
20
Propeller shaft
(See PROPELLER SHAFT REMOVAL/INSTALLATION.)
21
Connector bolt
22
Washer
23
Oil pipe, oil hose
(See OIL COOLER REMOVAL/INSTALLATION [SJ6A-EL].)
24
Transmission installation bolt
25
Transmission
(See Transmission Removal Note.)
(See Transmission Installation Note.)
26
Stopper
27
Bolt
28
Hose clamp
29
Breather hose
30
Breather tube
31
Bracket
32
Coupler bracket
33
Driven plate


Manual Shaft Lever Component Removal Note

1.  Mark the manual shaft lever component as shown in the figure.

ar8wzw00000186

2.  Remove the manual shaft lever component installation nut.


Torque Converter Installation Nuts Removal Note

1.  Lock the drive plate using a flathead screwdriver as shown in the figure.

2.  Remove the torque converter installation nuts using a SST.

ar8jjw00002765

Note
•  After separate the transmission from engine, remove the driven plate.

3.  Loosen the driven plate installation bolts.

ar8uuw00000323


Power Plant Frame Removal Note

1.  Support the transmission using a transmission jack.

ar8wzw00000188

2.  Remove the power plant frame.


Transmission Removal Note

Warning
•  Verify that the transmission is securely supported by the jack. If the transmission falls, serious injury or death and damage to the vehicle could result. Before removing the transmission make sure that the jack is securely supporting the transmission.
Caution
•  To prevent the torque converter and transmission from separating, remove the transmission without tilting it toward the torque converter.

1.  Support the transmission securely using a transmission jack.

ar8wzw00000188

2.  Remove the transmission installation bolt.


Transmission Installation Note

Warning
•  Verify that the transmission is securely supported by the jack. If the transmission falls, serious injury or death and damage to the vehicle could result. Before removing the transmission make sure that the jack is securely supporting the transmission.
Caution
•  To prevent the torque converter and transmission from separating, remove the transmission without tilting it toward the torque converter

1.  Support the transmission securely using a transmission jack.

ar8wzw00000188

Caution
•  When install the new transmission, remove the holder with a bolt as shown in the figure.
ar8uuw00000328

2.  Install the driven plate to the transmission (torque converter), and temporarily tighten.

3.  Tighten the transmission mounting bolts.

ar8uuw00000329

Bolt length
A: 55 mm {2.2 in}
B: 70 mm {2.8 in}
Tightening torque
37—52 N·m {3.8—5.3 kgf·m, 28—38 ft·lbf}


Power Plant Frame Installation Note

1.  Support the transmission and differential so that they are level using a transmission jack.

ar8wzw00000188

2.  Install the power plant frame.

3.  Install the plate.

4.  Temporarily tighten the bolts and nuts as shown in the figure.

ar8wzw00000189

5.  Tighten the nut B until the power plant frame is seated in the differential.

6.  Install the heat insulator, exhaust manifold stay, catalytic converter, middle pipe, main silencer and front tunnel member.

7.  Raise the power plant frame front end (transmission side) or transmission using a transmission jack so that dimension A (between power plant frame lower surface and front tunnel member lower surface) shown in the figure is within the adjustment value.

ar8uuw00000331

Note
•  When raising the power plant frame without a transmission jack, use bolts (M12x1.25) with a thread length of 55 mm {2.17 in} or more. Tighten the bolts from the underside of the front tunnel member as shown in the figure and raise the power plant frame.
•  When using bolts, the underside of the power plant frame could be damaged. Affix tape to the underside of the frame to prevent damage.
•  If there is the possibility of age-related bending/deterioration of the mount, adjust dimension A to approx. 15 mm {0.59 in} higher than the adjustment value to facilitate obtaining the specification.
Adjustment dimension A
55—57 mm {2.17—2.24 in}

8.  Tighten the bolts and nuts on the differential side in the order shown in the figure.

ar8wzw00000190

Step

Bolt, nut

Tightening torque

(N·m {kgf·m, ft·lbf})
1,
A
126.0—154.0
{12.9—15.7, 93.0—113.5}
2
B
126.0—154.0
{12.9—15.7, 93.0—113.5}
3
C
126.0—154.0
{12.9—15.7, 93.0—113.5}
4
F
74.5—93.2
{7.6—9.5, 55.0—68.7}

9.  Tighten the bolts and nuts on the transmission side as shown in the figure.

ar8wzw00000191

Tightening torque
126.0—154.0 N·m {12.9—15.7 kgf·m, 93.0—113.5 ft·lbf}

10.  Verify that dimension A is within the specification with the transmission jack and the adjustment bolt removed.

•  If not within the specification, adjust dimension A again.
Standard dimension A
48.4—56.4 mm {1.91—2.22 in}


Torque Converter Installation Nuts Installation Note

1.  Align the holes by turning the torque converter.

2.  Lock the drive plate using a flathead screwdriver.

Caution
•  Loosely and equally tighten the torque converter nuts, then further tighten them to the specified tightening torque.

3.  Tighten the torque converter installation nuts.

ar8wzw00000187

Tightening torque
34—49 N·m {3.5—4.9 kgf·m, 26—36 ft·lbf}

4.  Tighten the driven plate installation bolts.

Tightening torque
34—49 N·m {3.5—4.9 kgf·m, 26—36 ft·lbf}


Manual Shaft Lever Component Installation Note

1.  Align the mark of the manual shaft lever component as shown in the figure.

ar8wzw00000186

2.  Install the manual shaft lever component installation nut.

Tightening torque
10.8—14.7 N·m {1.1—1.4 kgf·m, 8.0—10.8 ft·lbf}
