HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

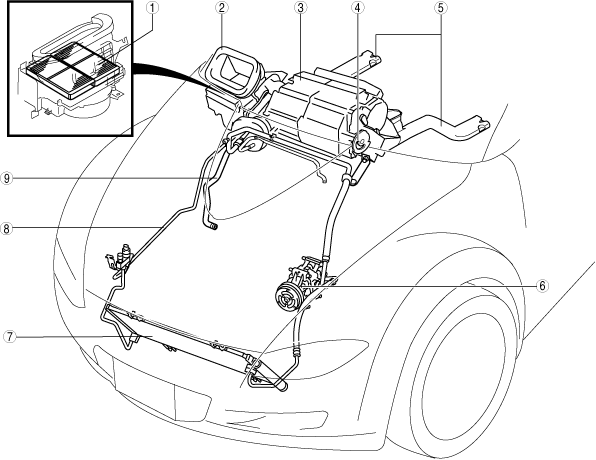

L.H.D.

ar8wzw00000455

1	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
2	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
3	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
4	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
5	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
6	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
7	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
8	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION.)
9	Heater hose

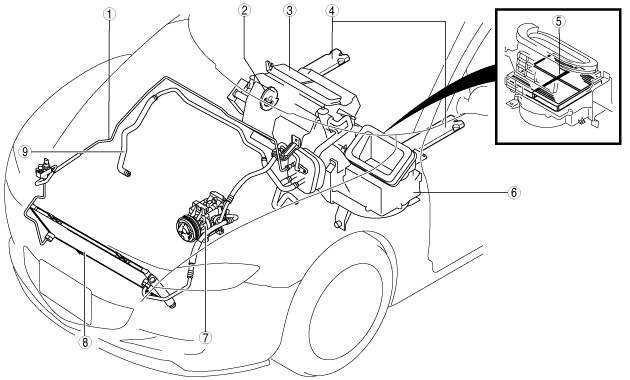

R.H.D.

ar8wzw00000456

1	Refrigerant line (See REFRIGERANT LINE REMOVAL/INSTALLATION.)
2	Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION.)
3	A/C unit (See A/C UNIT REMOVAL/INSTALLATION.) (See A/C UNIT DISASSEMBLY/ASSEMBLY.) (See EVAPORATOR INSPECTION.) (See HEATER CORE INSPECTION.)
4	Rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION.)
5	Air filter (See AIR FILTER REMOVAL/INSTALLATION.) (See AIR FILTER INSPECTION.)
6	Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
7	A/C compressor (See A/C COMPRESSOR REMOVAL/INSTALLATION.)
8	Condenser (See CONDENSER REMOVAL/INSTALLATION.) (See CONDENSER INSPECTION.)
9	Heater hose
