HVAC CONTROL SYSTEM LOCATION INDEX [FULL-AUTO AIR CONDITIONER]

id0740a1806700

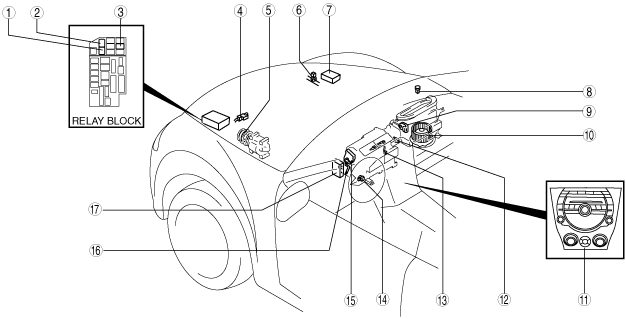

L.H.D.

ar8uuw00001351

1	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Rear window defroster relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
5	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
6	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
7	PCM (See PCM REMOVAL/INSTALLATION [13B-MSP].) (See PCM INSPECTION [13B-MSP].)
8	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
9	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
12	Power transistor (See POWER TRANSISTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See POWER TRANSISTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
15	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
16	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17	A/C amplifier (See A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See A/C AMPLIFIER INSPECTION [FULL-AUTO AIR CONDITIONER].)

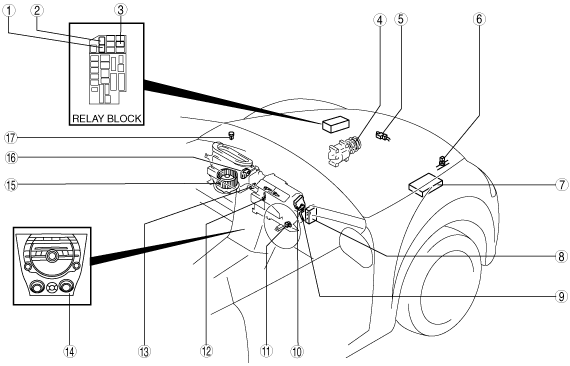

R.H.D.

ar8wzw00000430

1	A/C relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
2	Rear window defroster relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
3	Blower relay (See RELAY LOCATION.) (See RELAY INSPECTION.)
4	Magnetic clutch (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH ADJUSTMENT [FULL-AUTO AIR CONDITIONER].) (See MAGNETIC CLUTCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
5	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
6	Refrigerant pressure switch (See REFRIGERANT PRESSURE SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See REFRIGERANT PRESSURE SWITCH INSPECTION [FULL-AUTO AIR CONDITIONER].)
7	PCM (See PCM REMOVAL/INSTALLATION [13B-MSP].) (See PCM INSPECTION [13B-MSP].)
8	A/C amplifier (See A/C AMPLIFIER REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See A/C AMPLIFIER INSPECTION [FULL-AUTO AIR CONDITIONER].)
9	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
10	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
11	Cabin temperature sensor (See CABIN TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CABIN TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
12	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
13	Power transistor (See POWER TRANSISTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See POWER TRANSISTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
14	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER].)
15	Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See BLOWER MOTOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
16	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
17	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER].)
