REAR BUMPER REMOVAL/INSTALLATION

id091000800700

1.  Disconnect the negative battery cable.

2.  Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the rear combination lights. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

5.  Remove the rear splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION.)

6.  Remove the fasteners.

7.  Remove in the order indicated in the table.

ar8wzw00000972

1	Screw A
2	Screw B
3	Screw C
4	Fastener A
5	Fastener B
6	Screw D
7	License plate light (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
8	Rear fog light (Vehicles with rear fog light ) (See REAR FOG LIGHT REMOVAL/INSTALLATION.)
9	Rear bumper (SeeRear Bumper Removal Note.) (SeeRear bumper Installation Note.)

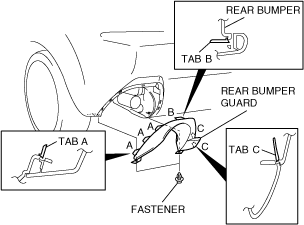

8.  Pull the rear bumper guard outward, detach tabs A, B,C,and then remove the rear bumper guard.

ar8uuw00001756

9.  Install in the reverse order of removal.

Rear Bumper Removal Note

1.  Pull the rear bumper ends (wheel arch) outward to detach from the bumper slider.

Caution

•  When detaching the rear bumper from the bumper slider, the rear bumper could fall and be damaged. Secure the rear bumper so that it does not fall.

ar8wzw00000973

Rear bumper Installation Note

1.  Spread the rear bumper ends (wheel arches) apart.

2.  Attach the rear bumper to the body.

3.  Press the rear bumper connecting area into the body to engage with the bumper slider.
