FRONT DOOR REMOVAL/INSTALLATION

id091100800200

1.  Disconnect the negative battery cable.

2.  To remove the checker, remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

3.  To remove the front door hinge, remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(2)  Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

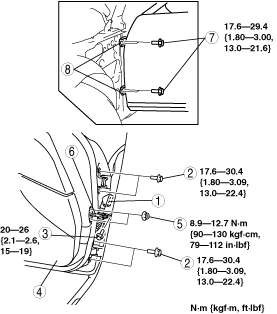

4.  Remove in the order indicated in the table.

ar8uuw00000710

1	Connector (See Connector Removal Note.)
2	Bolt A
3	Bolt B
4	Front door
5	Nut
6	Checker
7	Bolt C
8	Front door hinge

5.  Install in the reverse order of removal.

6.  Adjust the front door. (See DOOR ADJUSTMENT.)

Connector Removal Note

1.  Pull the rubber boot outward.

2.  Pull down the lever in the direction indicated by the arrow and disconnect the connector.

ar8uuw00000711
