FRONT DOOR UNIT REMOVAL/INSTALLATION

id091100800500

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(4)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

3.  Disconnect the door lock actuator connector.

4.  Remove the front door wiring harness from the front door unit.

5.  Remove screw A.

chu0911w001

6.  Remove screws B and the fastener.

7.  Remove the front door unit.

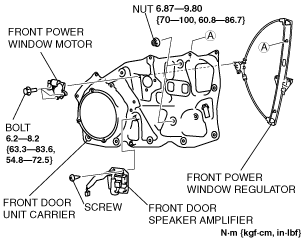

8.  Remove the following parts:

chu0911w002

•  Front power window motor

•  Front power window regulator

•  Front door speaker amplifier

9.  Install in the reverse order of removal.
