HEAD IMPACT PAD REMOVAL/INSTALLATION

id091700806500

1.  Remove the following parts:

(1)  Weatherstrip

(2)  Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(3)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(4)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(5)  Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(7)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

(8)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(9)  Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.)

(10)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(11)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(12)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

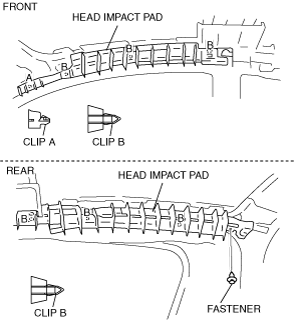

2.  Remove the fastener.(Rear)

ar8uuw00001934

3.  Pull the head impact pad outward and detach clips A and B.(Front)

4.  Pull the head impact pad outward and detach clips B.(Rear)

5.  Remove the head impact pad.

6.  Install in the reverse order of removal.
