ANTENNA FEEDER NO.2 INSTALLATION

id092000843600

Caution

•  If the antenna feeder is installed with tension on the cable and wiring harness it could result in loosening of the connection areas and poor contact. When installing and connecting the antenna feeder, always make sure there is slack on the cable and wiring harness.

Note

•  The antenna feeder is integrated with the vehicle wiring harness.

•  When installing a new antenna feeder, secure it to the vehicle wiring harness along the installation route of the old antenna feeder.

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Sunroof seaming welt (with sunroof)

(2)  Roof side trim (See ROOF SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Inner scuff plate (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(5)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(6)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(7)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(8)  Rear pillar trim (See REAR PILLAR TRIM REMOVAL/INSTALLATION.)

(9)  Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(10)  Interior light (See INTERIOR LIGHT REMOVAL/INSTALLATION.)

(11)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(12)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(13)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

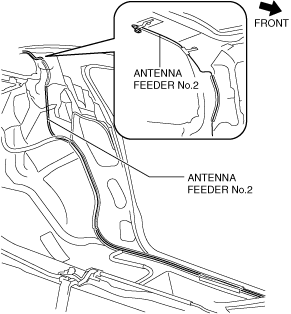

3.  Align and secure the new antenna feeder No.2 to the vehicle wiring harness.
