INSTRUMENT CLUSTER STRUCTURAL VIEW
id092200101200
Meter And Gauge
ar8wzn00000287
|
Warning And Indicator Light

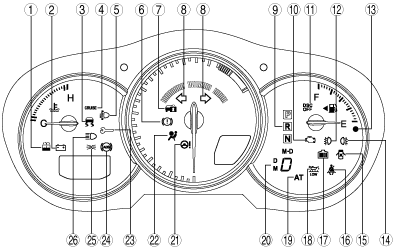

L.H.D.
ar8wzn00000288
|
|
No. |
Warning and indicator light |
Input signal source |
CAN system |
Description |
Note |
|---|---|---|---|---|---|
|
1
|
Washer fluid level warning light
|
Washer fluid level sensor
|
—
|
When the washer fluid-level is low, the washer fluid level warning light illuminates.
|
With washer fluid level sensor
|
|
2
|
Generator warning light
|
PCM
|
×
|
Illuminates if the generator output is not normal.
|
—
|
|
3
|
DSC indicator light
|
DSC HU/CM
|
×
|
• If the DSC system is malfunctioning, the DSC indicator light remains illuminated.
(See DSC INDICATOR LIGHT FUNCTION.)
• When the DSC or TCS is operating, the DSC indicator light flashes.
(See DSC INDICATOR LIGHT FUNCTION.)
|
—
|
|
4
|
Cruise main indicator light (amber)
|
PCM
|
×
|
Illuminates if the cruise control system is in control status. (See CRUISE CONTROL SYSTEM OUTLINE [13B-MSP].)
|
With cruise control system
|
|
Cruise set indicator light (green)
|
|||||
|
5
|
Headlight auto leveling warning light
|
Auto leveling control module
|
—
|
The headlight auto leveling system warning light illuminates if a malfunction in the auto leveling system is detected.
|
With headlight auto leveling system
|
|
6
|
Brake system warning light
|
DSC HU/CM
|
×
|
If the DSC system is malfunctioning, the brake system warning light remains illuminated.
|
—
|
|
Brake fluid-level sensor
|
—
|
Illuminates when brake fluid level is the specified value or less.
|
|||
|
Parking brake switch
|
—
|
When the parking brake is operating, the brake system warning light illuminates.
|
|||
|
PCM
|
×
|
Brake system warning light illumination request.
|
|||
|
7
|
Security light
|
Keyless control module
|
—
|
Illuminates or flashes when immobilizer system has malfunction.
|
—
|
|
8
|
Turn indicator light
|
Hazard warning switch
|
—
|
• Flashes when ignition switch is ON position during turn switch operation.
• Flashes when hazard warning switch is on.
|
—
|
|
9
|
Selector indicator light
|
TCM
|
×
|
The selector indicator light displays the selector lever position.
|
AT
|
|
10
|
MIL
|
PCM
|
×
|
Illuminates if a malfunction occurs in the engine control system and the automatic transmission control system. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [13B-MSP].)
|
—
|
|
11
|
DSC OFF indicator light
|
DSC HU/CM
|
×
|
• If the DSC system is malfunctioning, the DSC OFF light remains flashed.
• When the DSC OFF switch is pressed to disable, the DSC OFF light illuminates.
|
—
|
|
12
|
Front fog light indicator light
|
Front fog light relay
|
—
|
When the front fog light illuminates, the front fog indicator light illuminates.
|
With front fog light
|
|
13
|
Fuel-level warning light
|
Fuel gauge sender unit
|
—
|
When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.
|
—
|
|
14
|
Rear fog light indicator light
|
Rear fog light relay
|
—
|
When the rear fog light illuminates, the rear fog light indicator light illuminates.
|
With rear fog light
|
|
15
|
Door ajar warning light
|
• Door switch
• Trunk compartment light switch
|
—
|
Illuminates when door or trunk lid is open.
|
—
|
|
16
|
Seat belt warning light
|
SAS control module
|
—
|
When the driver’s seat belt is not fastened, the seat belt warning light illuminates.
|
—
|
|
17
|
Coolant level warning light
|
PCM
|
×
|
Illuminates when engine coolant level is the specified value or less.
|
—
|
|
18
|
Oil level warning light
|
PCM
|
×
|
• Illuminates when engine oil level is the specified value or less.
• Flashes when a DTC is recorded in the PCM after a malfunction in the oil supply control occurs. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [13B-MSP].)
|
—
|
|
19
|
AT warning light
|
TCM
|
×
|
The AT warning light illuminates to alert the driver of a malfunction in the automatic transmission.
|
AT
|
|
20
|
Gear position indicator light
|
TCM
|
×
|
The gear position indicator light displays the gear position when in the manual mode.
|
AT
|
|
21
|
Electric power steering (EPS) warning light
|
EPS control module
|
×
|
Illuminates when EPS system has malfunction.
|
—
|
|
22
|
Air bag system warning light
|
SAS control module
|
—
|
Illuminates or flashes when SRS air bag system has malfunction.
|
—
|
|
23
|
Malfunction warning light
|
PCM
|
×
|
Malfunction warning light illumination request.
|
With malfunction warning light
|
|
24
|
ABS warning light
|
DSC HU/CM
|
×
|
If the DSC system is malfunctioning, the ABS warning light remains illuminated.
|
—
|
|
25
|
TNS indicator light
|
TNS relay
|
—
|
When the TNS illuminates, the TNS indicator light illuminates.
|
—
|
|
26
|
High-beam indicator light
|
Light switch
|
—
|
When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.
|
—
|
R.H.D.
ar8wzn00000289
|
|
No. |
Warning and indicator light |
Input signal source |
CAN system |
Description |
Note |
|---|---|---|---|---|---|
|
1
|
Rear fog light indicator light
|
Rear fog light relay
|
—
|
When the rear fog light illuminates, the rear fog light indicator light illuminates.
|
With rear fog light
|
|
2
|
MIL
|
PCM
|
×
|
Illuminates if a malfunction occurs in the engine control system and the automatic transmission control system. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [13B-MSP].)
|
—
|
|
3
|
DSC OFF indicator light
|
DSC HU/CM
|
×
|
• If the DSC system is malfunctioning, the DSC OFF light remains flashed.
• When the DSC OFF switch is pressed to disable, the DSC OFF light illuminates.
|
—
|
|
4
|
Selector indicator light
|
TCM
|
×
|
The selector indicator light displays the selector lever position.
|
AT
|
|
5
|
Gear position indicator light
|
TCM
|
×
|
The gear position indicator light displays the gear position when in the manual mode.
|
AT
|
|
6
|
Security light
|
Keyless control module
|
—
|
Illuminates or flashes when immobilizer system has malfunction.
|
—
|
|
7
|
Turn indicator light
|
Hazard warning switch
|
—
|
• Flashes when ignition switch is ON position during turn switch operation.
• Flashes when hazard warning switch is on.
|
—
|
|
8
|
Headlight auto leveling warning light
|
Auto leveling control module
|
—
|
The headlight auto leveling system warning light illuminates if a malfunction in the auto leveling system is detected.
|
With headlight auto leveling system
|
|
9
|
Cruise main indicator light (amber)
|
PCM
|
×
|
Illuminates if the cruise control system is in control status. (See CRUISE CONTROL SYSTEM OUTLINE [13B-MSP].)
|
With cruise control system
|
|
Cruise set indicator light (green)
|
|||||
|
10
|
DSC indicator light
|
DSC HU/CM
|
×
|
• If the DSC system is malfunctioning, the DSC indicator light remains illuminated.
• When the DSC or TCS is operating, the DSC indicator light flashes.
|
—
|
|
11
|
High-beam indicator light
|
Light switch
|
—
|
When the headlight (high-beam) illuminates, the high-beam indicator light illuminates.
|
—
|
|
12
|
Fuel-level warning light
|
Fuel gauge sender unit
|
—
|
When the remaining fuel amount in the fuel tank is low, the fuel-level warning light illuminates.
|
—
|
|
13
|
Washer fluid level warning light
|
Washer fluid level sensor
|
—
|
When the washer fluid-level is low, the washer fluid level warning light illuminates.
|
With washer fluid level sensor
|
|
14
|
Generator warning light
|
PCM
|
×
|
Illuminates if the generator output is not normal. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [13B-MSP].)
|
—
|
|
15
|
TNS indicator light
|
TNS relay
|
—
|
When the TNS illuminates, the TNS indicator light illuminates.
|
—
|
|
16
|
ABS warning light
|
DSC HU/CM
|
×
|
If the DSC system is malfunctioning, the ABS warning light remains illuminated.
|
—
|
|
17
|
Malfunction warning light
|
PCM
|
×
|
Malfunction warning light illumination request.
|
With malfunction warning light
|
|
18
|
Electric power steering (EPS) warning light
|
EPS control module
|
×
|
Illuminates when EPS system has malfunction.
|
—
|
|
19
|
Air bag system warning light
|
SAS control module
|
—
|
Illuminates or flashes when SRS air bag system has malfunction.
|
—
|
|
20
|
Brake system warning light
|
DSC HU/CM
|
×
|
If the DSC system is malfunctioning, the brake system warning light remains illuminated.
|
—
|
|
Brake fluid-level sensor
|
—
|
Illuminates when brake fluid level is the specified value or less.
|
|||
|
Parking brake switch
|
—
|
When the parking brake is operating, the brake system warning light illuminates.
|
|||
|
PCM
|
×
|
Brake system warning light illumination request.
|
|||
|
21
|
Oil level warning light
|
PCM
|
×
|
• Illuminates when engine oil level is the specified value or less.
• Flashes when a DTC is recorded in the PCM after a malfunction in the oil supply control occurs. (See ON-BOARD DIAGNOSTIC SYSTEM TEST MODE [13B-MSP].)
|
—
|
|
22
|
AT warning light
|
TCM
|
×
|
The AT warning light illuminates to alert the driver of a malfunction in the automatic transmission.
|
AT
|
|
23
|
Coolant level warning light
|
PCM
|
×
|
Illuminates when engine coolant level is the specified value or less.
|
—
|
|
24
|
Seat belt warning light
|
SAS control module
|
—
|
When the driver’s seat belt is not fastened, the seat belt warning light illuminates.
|
—
|
|
25
|
Door ajar warning light
|
• Door switch
• Trunk compartment light switch
|
—
|
Illuminates when door or trunk lid is open.
|
—
|
|
26
|
Front fog light indicator light
|
Front fog light relay
|
—
|
When the front fog light illuminates, the front fog indicator light illuminates.
|
With front fog light
|
