WHEEL HUB, STEERING KNUCKLE REMOVAL/INSTALLATION

id031100800400

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor harness connector (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. After installation, inspect the front wheel alignment. (See FRONT WHEEL ALIGNMENT.)

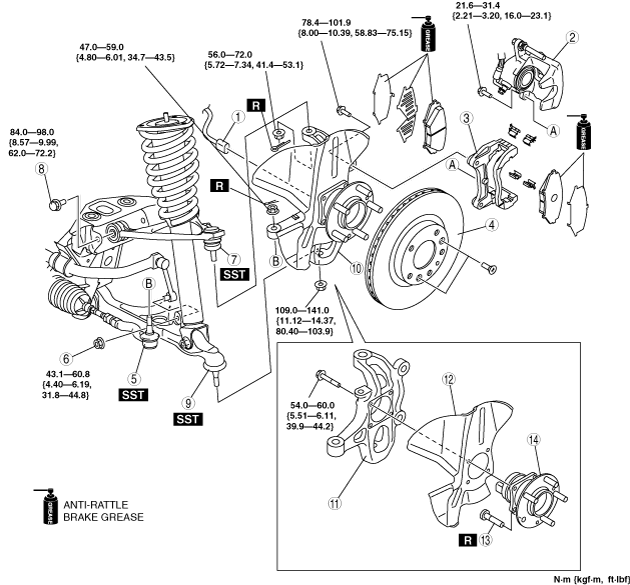

ar8wzw00001534

1

ABS wheel-speed sensor connector

2

Brake caliper component

(See Brake Caliper Component Removal Note.)

3

Mounting support

4

Disc plate

5

Tie-rod end

(See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)

6

Stabilizer control link (lower)

7

Front upper arm ball joint

(See FRONT UPPER ARM REMOVAL/INSTALLATION.)

8

Front upper arm bolt

9

Front lower arm ball joint

(See FRONT LOWER ARM REMOVAL/INSTALLATION.)

10

Wheel hub, steering knuckle component

11

Steering knuckle

12

Dust cover

13

Wheel hub bolt

14

Wheel hub component

Brake Caliper Component Removal Note

1. Remove the brake caliper component installation bolt, and suspend the brake caliper component with a cable in place out of the way.

1	ABS wheel-speed sensor connector
2	Brake caliper component (See Brake Caliper Component Removal Note.)
3	Mounting support
4	Disc plate
5	Tie-rod end (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)
6	Stabilizer control link (lower)
7	Front upper arm ball joint (See FRONT UPPER ARM REMOVAL/INSTALLATION.)
8	Front upper arm bolt
9	Front lower arm ball joint (See FRONT LOWER ARM REMOVAL/INSTALLATION.)
10	Wheel hub, steering knuckle component
11	Steering knuckle
12	Dust cover
13	Wheel hub bolt
14	Wheel hub component
