CYLINDER BLOCK DISASSEMBLY(II)

BME011010300506

Note

• The internal parts of the cylinder block will not be available for the "TRIBUTE (L.H.D.) Face-lifted model"

(Refer to TRIBUTE Workshop Manual for identifying Face-lifted model.)

1. Disassemble in the order indicated in the table.


1	Connecting rod cap (See Connecting Rod Cap Disassembly Note)
2	Connecting rod bearing
3	Connecting rod, piston (See Connecting Rod, Piston Disassembly Note)
4	Piston ring
5	Snap ring
6	Piston pin (See Piston Pin Disassembly Note)
7	Connecting rod
8	Piston
9	Lower cylinder block (See Lower Cylinder Block Disassembly Note)
10	Lower main bearing, thrust bearing
11	Crankshaft
12	Upper main bearing, thrust bearing
13	Upper cylinder block

Connecting Rod Cap Disassembly Note

1. Before removing the connecting rod cap, inspect the connecting rod side clearance. (See CONNECTING ROD SIDE CLEARANCE INSPECTION.)

2. Remove the connecting rod bolt from the connecting rod cap by tapping the bolt with a plastic hammer.

1. Before removing the connecting rod and piston, inspect the connecting rod oil clearance. (See CONNECTING ROD OIL CLEARANCE INSPECTION/REPAIR.)

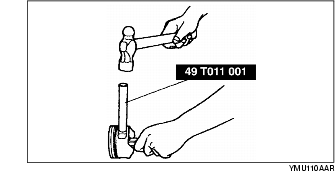

1. Remove the piston pin using the SST.

1. Before removing the lower cylinder block, inspect the crankshaft end play. (See CRANKSHAFT END PLAY INSPECTION.)

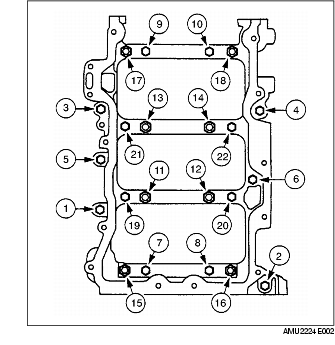

2. Remove the lower cylinder block bolts in the order indicated in the figure in several passes.
