FUEL SYSTEM LOCATION INDEX[AJ (3.0L Duratec)]

id0114a1800100

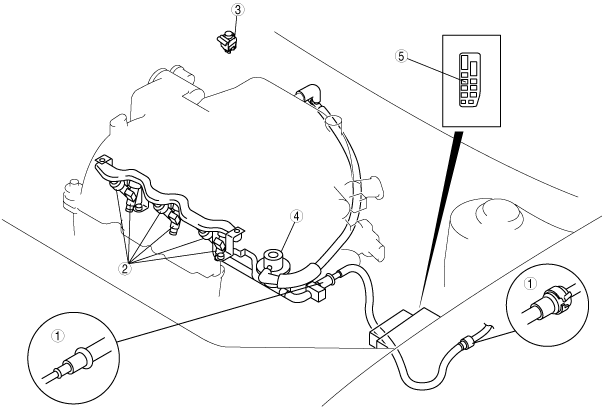

Engine Compartment Side

atraaw00003253

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
2	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See FUEL INJECTOR INSPECTION[AJ (3.0L Duratec)].)
3	Fuel pump stop switch (See FUEL PUMP STOP SWITCH REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See FUEL PUMP STOP SWITCH INSPECTION[AJ (3.0L Duratec)].)
4	Pulsation damper (See PULSATION DAMPER REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See PULSATION DAMPER INSPECTION[AJ (3.0L Duratec)].)
5	Fuel pump relay

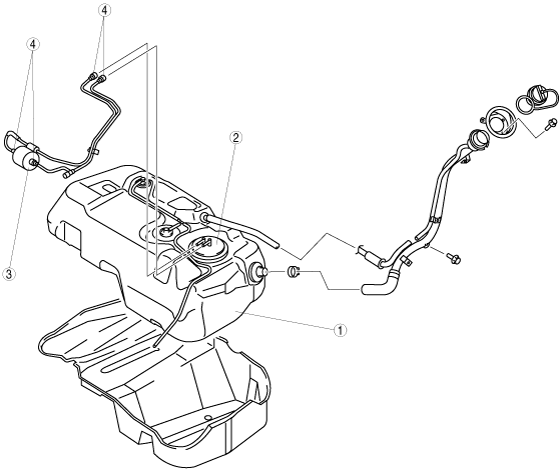

Fuel Tank Side

atraaw00003364

1	Fuer tank (See FUEL TANK REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION[AJ (3.0L Duratec)].) (See FUEL PUMP UNIT INSPECTION[AJ (3.0L Duratec)].)
3	Fuel filter (high pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION[AJ (3.0L Duratec)].)
