EMISSION SYSTEM LOCATION INDEX[L3]

id0116a2803700

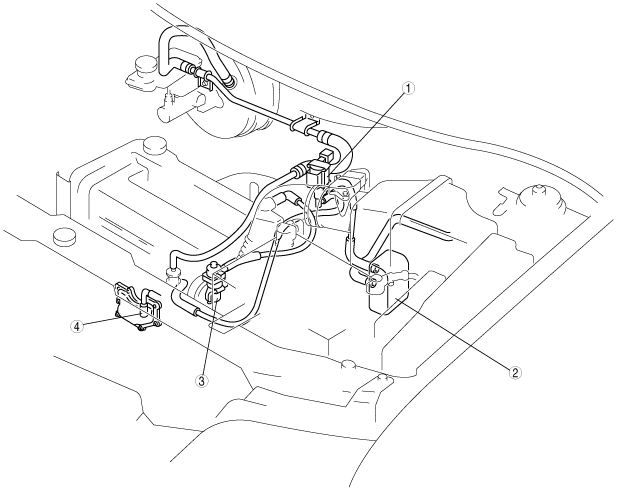

Engine compartment side

atraaw00000591

1	Purge solenoid valve (See PURGE SOLENOID VALVE INSPECTION[L3].)
2	Catch tank (Built into air cleaner) (See CATCH TANK INSPECTION[L3].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION[L3].) (See EGR VALVE INSPECTION[L3].)
4	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION[L3].)

Fuel tank side

atraaw00000592

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION[L3].) (See ROLLOVER VALVE INSPECTION[L3].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION[L3].) (See CHARCOAL CANISTER INSPECTION[L3].)
3	Check valve (Two-way)
