REAR HEAT DUCT REMOVAL/INSTALLATION

id071100800900

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front seat (See FRONT SEAT REMOVAL/INSTALLATION.)

(2)  Floor console (See FLOOR CONSOLE REMOVAL/INSTALLATION.)

(3)  A-pillar lower trim

(4)  Front scuff plate

(5)  Rear scuff plate

(6)  B-pillar lower trim (See B-PILLAR TRIM REMOVAL/INSTALLATION.)

(7)  Trunk end trim

(8)  Trunk side trim

3.  Turn over the floor covering.

4.  Slide the rear heat duct (3).

aesffw00000087

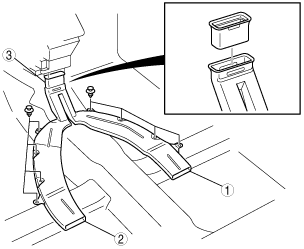

5.  Remove in the order indicated in the table.

aesffw00000088

1	Rear heat duct (1)
2	Rear heat duct (2)
3	Rear heat duct (3)

6.  Install in the reverse order of removal.
