FUEL TANK INSPECTION [L3 R.H.D.]

Note

• This inspection is for two rollover valves integrated in the fuel tank.

1. Perform the 'Fuel Line Safety Procedure' referring to the BEFORE SERVICE PRECAUTION. (See BEFORE SERVICE PRECAUTION [L3].)

2. Disconnect the negative battery cable.

3. Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION [L3].)

4. Remove the residual fuel.

5. Install the fuel pump unit. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [L3].)

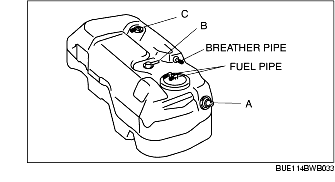

6. Plug the fuel pipe, breather pipe and port C of the fuel pump unit.

7. Place the fuel tank in a level position.

8. Blow through port B and verify that there is airflow from port A.

• If there is no airflow, replace the fuel tank.

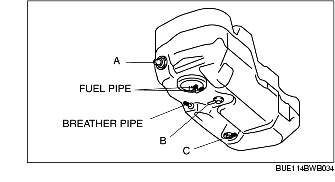

9. Turn the fuel tank upside-down. Blow through port B and verify that there is no airflow from port A.

• If there is airflow, replace the fuel tank.
