1. Disconnect the negative battery cable.
2. Remove the splash shield.
3. Disconnect the EGR valve connector.

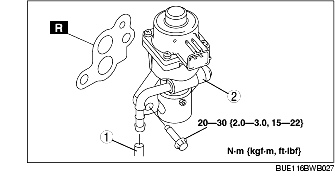

4. Remove in the order indicated in the table.
|
1
|
Water hose
(See Water Hose Removal Note.)
|
|
2
|
EGR valve
(See EGR Valve Removal Note.)
|
|
3
|
Gasket
|
5. Install in the reverse order of removal.
1. Drain the engine coolant from the radiator.
1. Remove the air hose. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3].)
2. Remove the radiator hose (upper, engine side). (See RADIATOR REMOVAL/INSTALLATION [L3].)
