1. Disconnect the negative battery cable.

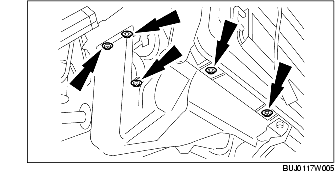

2. Remove the transverse member. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION.)
3. Remove the exhaust front pipe. (See FRONT PIPE REMOVAL/INSTALLATION [AJ (3.0L Duratec)].)
4. Remove the drive shaft (RH).
5. Remove the lower splash shield screw (RH) and pin type retainer.
6. Remove the drive belt from the generator. (See DRIVE BELT REPLACEMENT [AJ (3.0L Duratec)].)
7. Remove the upper generator mounting bolt.

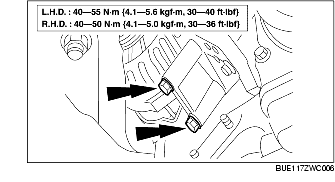

8. Remove the lower generator bolts and move the generator to the side.

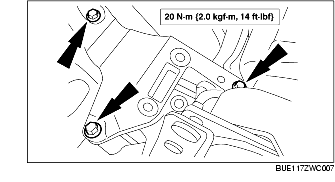

9. Remove the generator mounting bracket bolts, then remove the bracket.
10. Remove the generator connector.
11. Rotate the generator to open a space, then remove the generator through the fender well opening.
12. Install in the reverse order of removal.
