REAR COIL SPRING REMOVAL/ INSTALLATION

1. Remove the wheel and tire assembly. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

2. Remove the brake pipe fixing clip, and disconnect the brake pipe.

3. Position the ABS wheel-speed sensor aside.

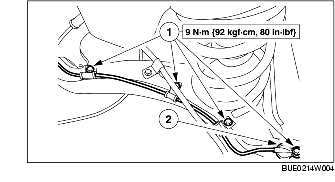

(1) Remove the ABS wheel-speed sensor bolt and bracket bolts.

(2) Position the ABS wheel-speed sensor aside.

4. Support the rear wheel knuckle.

5. Loosen both inside upper and lower arm bolts.

6. Remove the lower shock nut and position aside.

7. Remove the spring.

Note

• Note the position of the upper spring seat rubber and spring for installation.

(1) Remove the support to the wheel knuckle.

(2) Remove the spring.

8. Remove in the reverse order of removal.

9. Bleed the brake system after installation. (See AIR BLEEDING (BRAKE SYSTEM).)
