BACKING PLATE REMOVAL/INSTALLATION


id041100189000

1. Remove the wheel cylinder. (See WHEEL CYLINDER REMOVAL/INSTALLATION.)

2. Remove the wheel hub. (See REAR AXLE REMOVAL/INSTALLATION.)

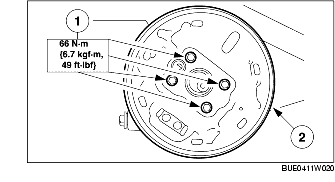

3. Remove the backing plate.

(1) Remove the bolts.
(2) Remove the backing plate.

4. Install in the reverse order of removal.
