TRANSFER REMOVAL/INSTALLATION [GF4AX-EL]


id0517a4259000

1. Disconnect the negative battery cable.

2. Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GF4AX-EL].)

3. Remove the transverse member.

4. Remove the catalytic converter. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3].)

5. Remove the exhaust manifold. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [L3].)

6. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

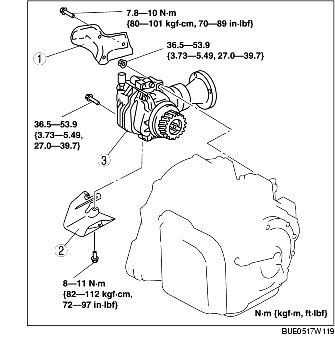

7. Remove in the order indicated in the table.

1
PTO heat shield
2
Air guide plate
3
Transfer

8. Install in the reverse order of removal

9. Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [GF4AX-EL].)

10. Connect the negative battery cable.
