TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR INSPECTION [GF4AX-EL]

id0517a4801000

On-Vehicle Inspection

1. Disconnect the negative battery cable.

2. Remove the battery and battery tray.

3. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3].)

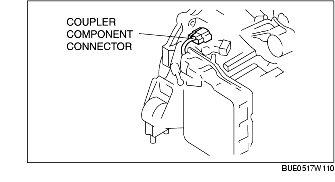

4. Disconnect the coupler component connector.

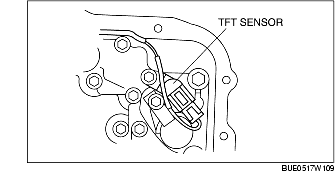

5. Measure the resistance between the terminals of the TFT sensor.

• If there is any malfunction, perform the off-vehicle inspection of TFT sensor. (See Off-Vehicle Inspection.)

ATF temperature (°C {°F})

Resistance (kilohm)

-20 {-4}
13.47-17.17
0 {32}
5.445-6.678
20 {68}
2.441-2.894
40 {104}
1.193-1.374
60 {140}
0.6284-0.7048
80 {176}
0.3527-0.3865
100 {212}
0.2091-0.2245
120 {248}
0.1301-0.1372
130 {266}
0.1044-0.1090

6. Connect the coupler component connector.

7. Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3].)

8. Install the battery tray and battery.

9. Connect the negative battery cable.

Off-Vehicle Inspection

1. Remove the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [GF4AX-EL].)

2. Place the TFT sensor and in ATF a thermometer as shown in the figure, and heat the ATF gradually.

3. Measure the resistance between the terminals of the TFT sensor.

• If there is any malfunction, replace the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [GF4AX-EL].)
• If it is normal, replace the harness.

ATF temperature (°C {°F})

Resistance (kilohm)

-20 {-4}
13.47-17.17
0 {32}
5.445-6.678
20 {68}
2.441-2.894
40 {104}
1.193-1.374
60 {140}
0.6284-0.7048
80 {176}
0.3527-0.3865
100 {212}
0.2091-0.2245
120 {248}
0.1301-0.1372
130 {266}
0.1044-0.1090

4. Install the TFT sensor. (See TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION [GF4AX-EL].)
