O/D OFF SWITCH INSPECTION [GF4AX-EL]
id0517a4803200
Operation Inspection
1. Turn the ignition switch to the ON position.
2. Verify that the O/D OFF indicator light is not illuminated. Press the O/D OFF switch and verify that the O/D OFF indicator light illuminates.
-
• If there is any malfunction, inspect the terminal voltage of the O/D OFF switch. (See Voltage Inspection.)
Voltage Inspection
1. Turn the ignition switch to the ON position.

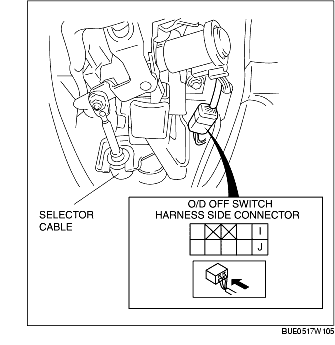

2. Measure the voltage at the O/D OFF switch connector.
-
• If there is any malfunction, inspect for continuity at the O/D OFF switch. (See Continuity Inspection.)
|
Position
|
Connector terminal
|
|
I
|
J
|
|
OFF (Normal)
|
(V)
|
0
|
B+
|
|
ON (Depressed)
|
(V)
|
0
|
0
|
Continuity Inspection
1. Disconnect the O/D OFF switch connector.
2. Verify that the continuity is as indicated in the table.
-
• If the switch is normal, inspect the wiring harness. (O/D OFF switch-PCM, O/D OFF switch-Body ground)
-
• If there is any malfunction, replace the selector lever component. (See SELECTOR LEVER REMOVAL/INSTALLATION.)
