A/C COMPRESSOR BRACKET REMOVAL/INSTALLATION


id071100804200

1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [AJ (3.0L Duratec)].)(See DRIVE BELT REPLACEMENT [L3].)(See DRIVE BELT REPLACEMENT [YF (2.0L Zetec)].)

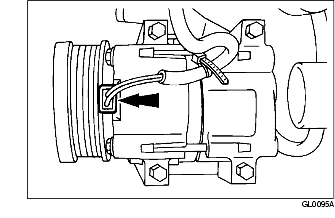

2. Disconnect the magnetic clutch connector.

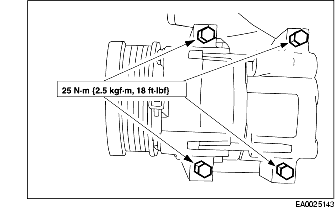

3. Remove the bolts and A/C compressor.

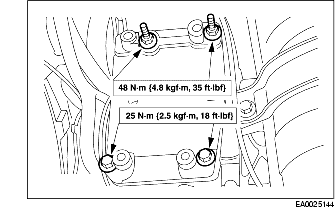

4. Remove the nuts, the bolts, and the A/C compressor bracket.

5. Install in the reverse order of removal.
