MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [L3]

id0740008004a4

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.


1	Bolt (See Bolt Removal/installation Note)
2	Pressure plate
3	Shim
4	Snap ring
5	A/C compressor pulley (See A/C Compressor Pulley Removal Note) (See A/C Compressor Pulley Installation Note)
6	Stator (See Stator Removal Note) (See Stator Installation Note)

3. Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT.)

Bolt Removal/installation Note

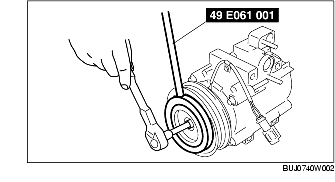

1. Remove/install the bolt using the SST.

2. When installing a new A/C compressor body, replace the bolt.

A/C Compressor Pulley Removal Note

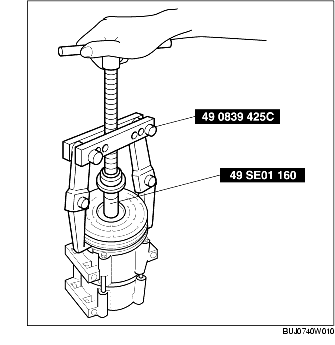

1. Remove the A/C compressor pulley using the SST.

Stator Removal Note

1. Remove the stator using the SST.

Stator Installation Note

1. Install the stator using the SST.

Caution

• Do not use air tools. The stator can be easily damaged.

A/C Compressor Pulley Installation Note

1. Install the A/C compressor pulley using the SST.

Caution

• If the SSTs are not properly positioned when the A/C compressor pulley is press-fit, the A/C compressor axle will interfere with the SSTs, possibly damaging component parts. Verify that the SST and axle are properly positioned and perform the procedure very carefully.
