1. Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)
2. Disconnect the connectors.
3. Disconnect the vacuum connector. (L.H.D.)
4. Disconnect the temperature blend door control cable. (L.H.D.) (See TEMPERATURE BLEND DOOR CONTROL CABLE REMOVAL/INSTALLATION.)

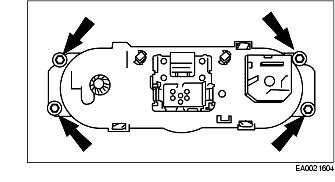

5. Remove the four screws and the climate control unit.
6. Install in the reverse order of removal.
