INNER HANDLE REMOVAL/INSTALLATION

id091400432700

1. Remove the door trim.(See FRONT DOOR TRIM REMOVAL/INSTALLATION.) (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

2. Position the door screen out of the way.

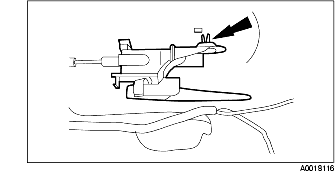

3. Remove the inner handle.

(1) Disengage the clip.

4. Remove the door latch cable.

(1) Disengage the cable conduit.

(2) Remove the door latch cable.

5. Install in the reverse order of removal.
