SUNSHADE REMOVAL/INSTALLATION


id091500801700

1. Remove the glass panel. (See GLASS PANEL REMOVAL/INSTALLATION.)

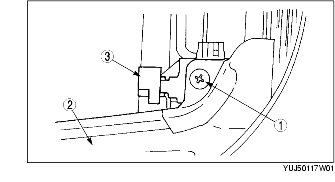

2. Remove the position plate.

(1) Remove the two screws.
(2) Remove the drip rail.
(3) Remove the position plate.

3. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

4. Remove the two sunshade stoppers.

5. Remove the sunshade.

6. Install in the reverse order of removal.
