FRONT DRAIN HOSE REMOVAL/INSTALLATION

id091500802000

Passenger-Side

1. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION.)

All Vehicles

1. Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION.)

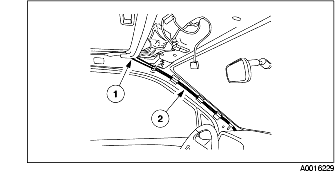

2. Disconnect the front drain hose at the front body pillar.

3. Remove the front drain hose.

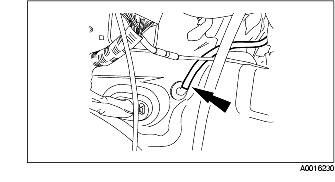

(1) Disconnect the front drain hose from the sunroof unit.

(2) Remove the front drain hose.

4. Install in the reverse order of removal.
