1. Disconnect the negative battery cable.
2. Remove the audio unit. (See AUDIO UNIT REMOVAL.)

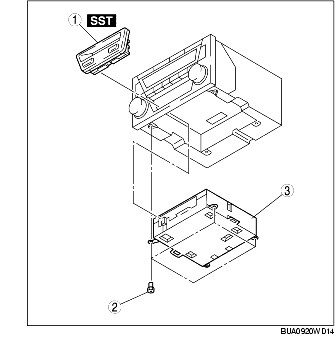

3. Remove in the order indicated in the table.
|
1
|
Cover
(See Cover Removal Note.)
|
|
2
|
Screw
(See Screw Installation Note.)
|
|
3
|
Lower module
|
4. Install in the order of removal.

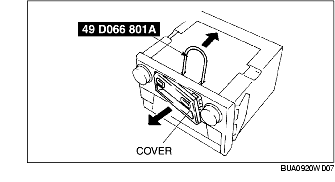

1. Insert the SST into the service holes on the bottom surface of the lower module.
2. To remove the cover, push the SST in the direction shown by the arrow.
1. If an undesignated screw is used, the inside of the upper module could be damaged. When installing the module, be sure to use a designated screw (red).
