Control Assembly: Service and Repair
Temperature Dial:
Removal 1.
Remove cover (3).
2.

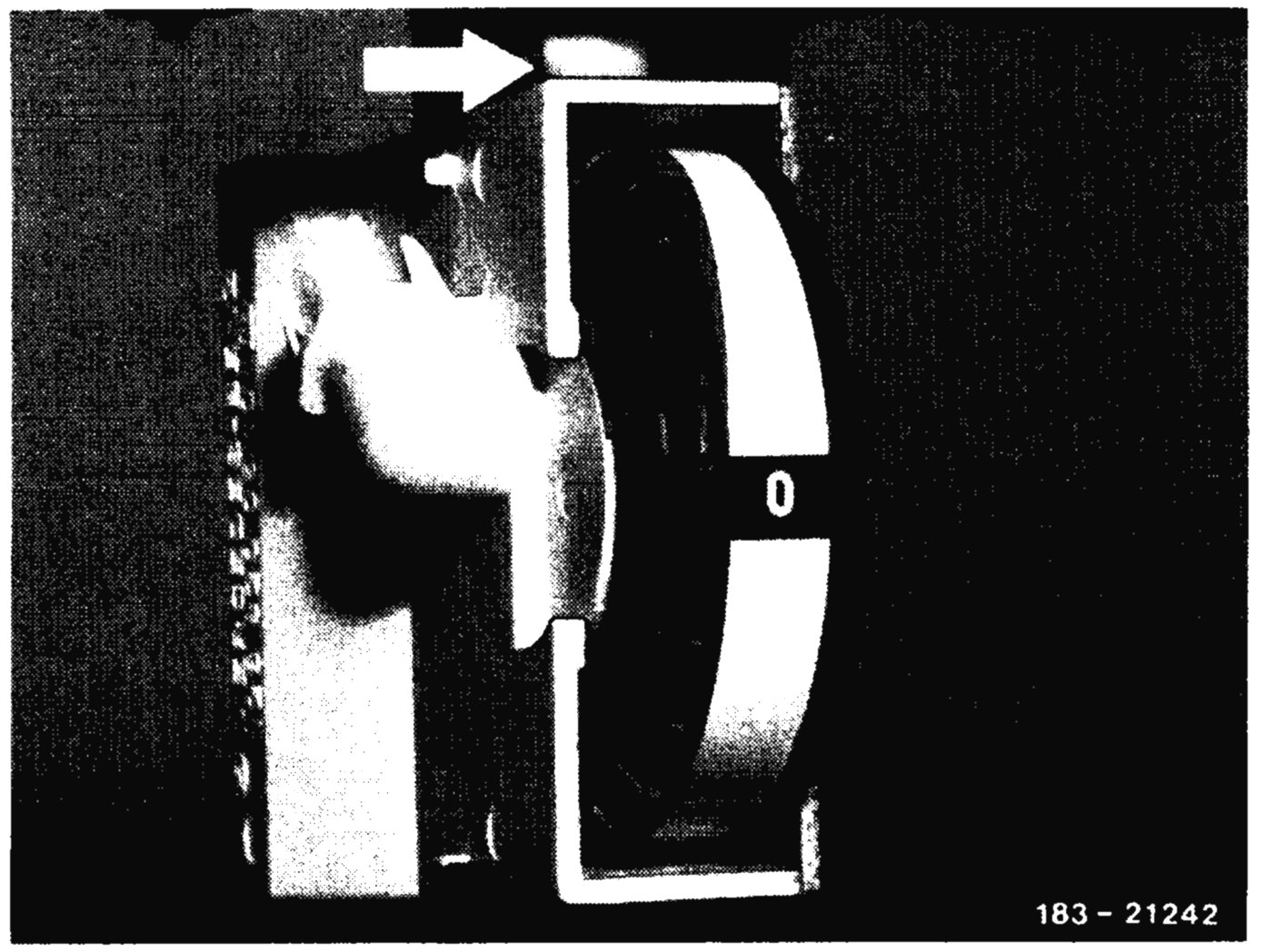

Unclip temperature dial from holder (refer to arrow) and remove in forward direction.
3.
Pull 2 and 4 pin plug from temperature dial and socket for lights.
Installation 1.
Plug 2 and 4 pin plug on temperature dial and light socket, and clip into holder.
2.
Install cover.
