Timing Chain

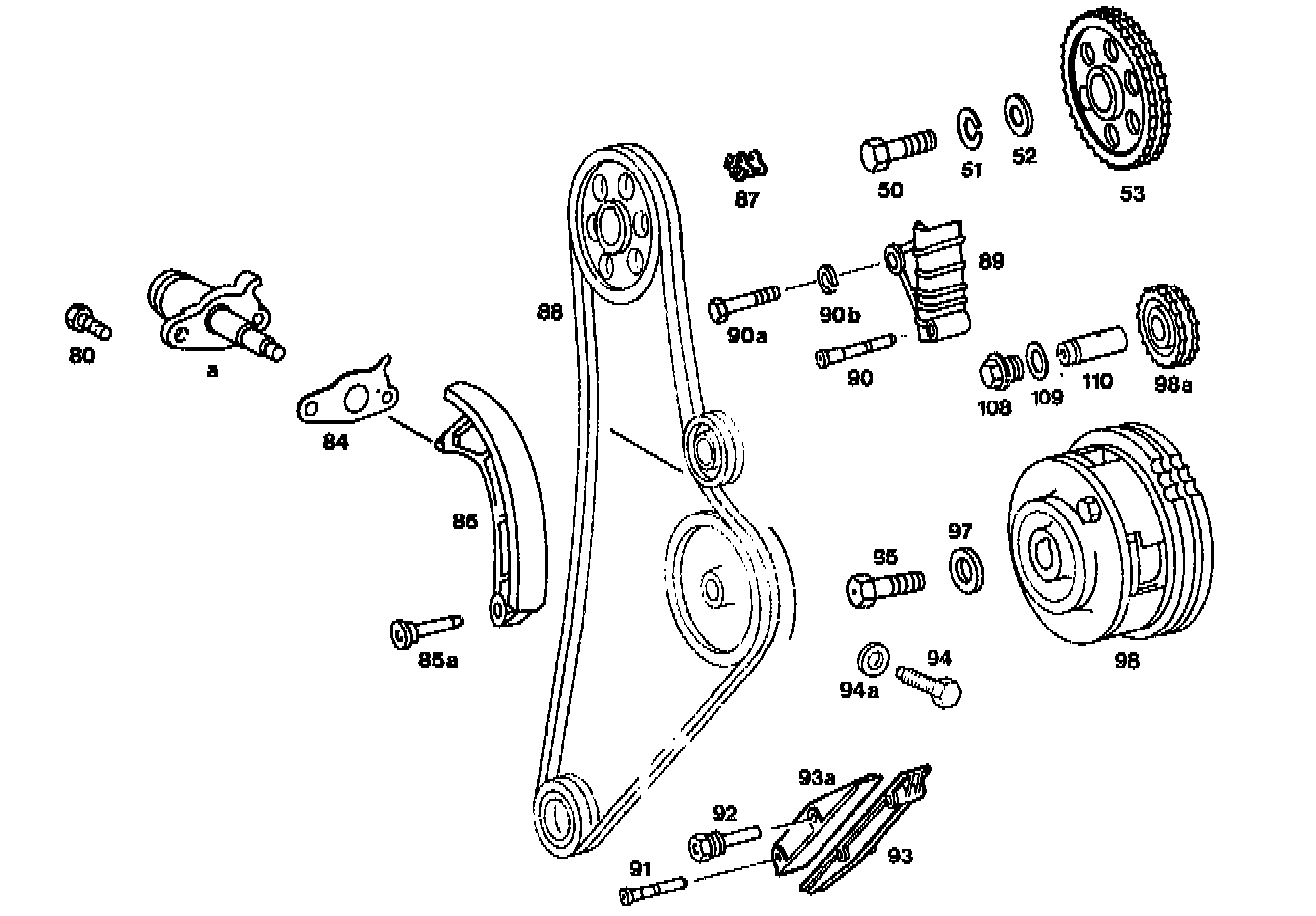

Timing chain, tension and slide rails

50 Waisted bolt M14 x 1.5 x 40
51 Lack washer B 14
52 Shim
53 Camshaft sprocket
80 2 bolts M8 x 20
84 Gasket
85 Tension rail
85a Bearing pin
87 Split link
88 Timing chain
89 Slide rail
90 Bearing pin
90a Bolt M 8 x 50
90b Lock washer A 8
91 3 bearing pins
92 Screw plug with bearing pin
93 Outer slide rail
93a Inner slide rail
94 Chain retainer
94a Sealing ring A 12x 17
95 Bolt M10 x 45
97 Washer
98 Injection timing device
98a Idler
108 Screw plug
109 Sealing ring
110 Shaft
a Chain tensioner
