Air Conditioning Switch: Service and Repair
SWITCH FOR AIR-CONDITIONING SYSTEM (STARTING 07/81)Removal:
1.

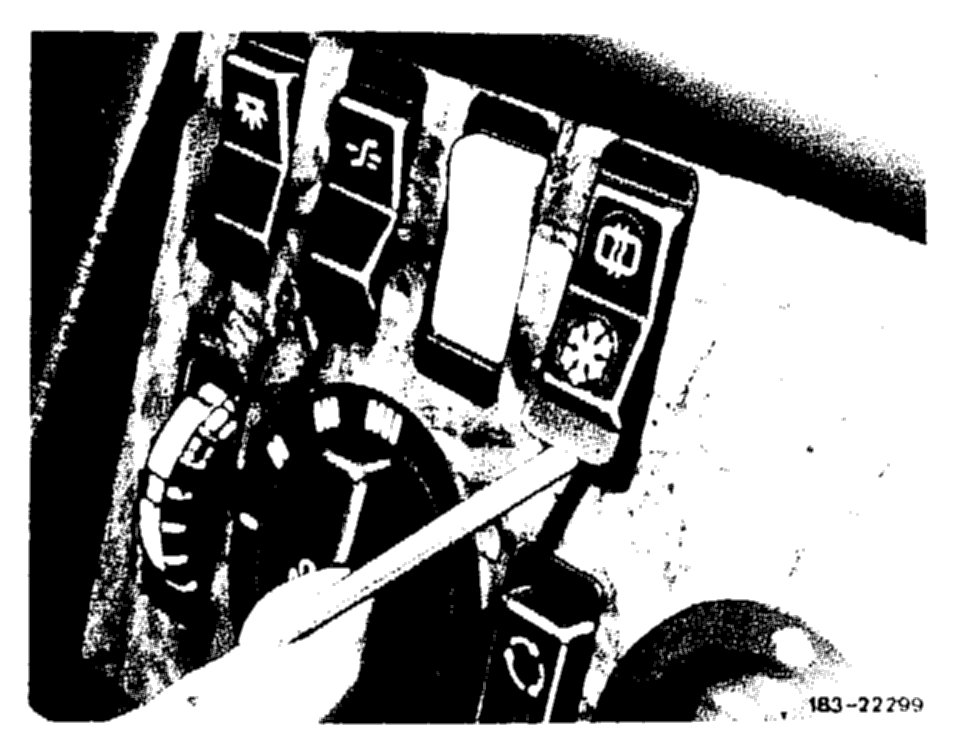

Unclip springs at bottom and top on switch by means of a flat, wedge shaped tool and pull out switch.
2.
Pull coupling from switch.
Installation:
3.
Press coupling on switch and insert switch into cover.
