Temperature Sensor

In-Car Temperature Sensor

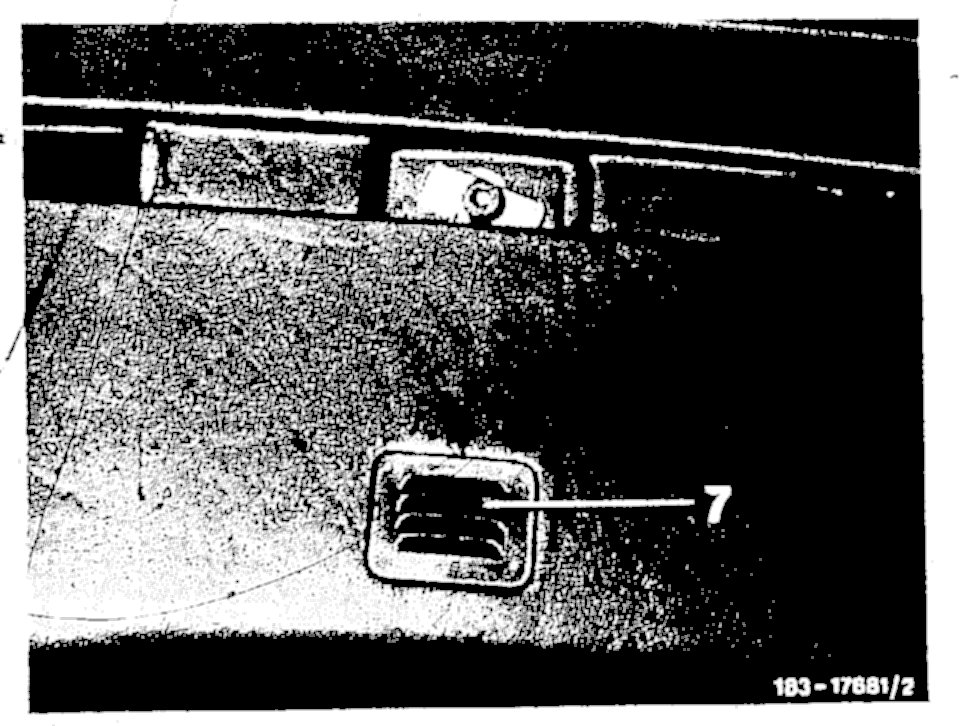

Layout Of In-Car Temperature Sensor On Instrument Panel






7 In-car temperature sensor (up to 06/81)

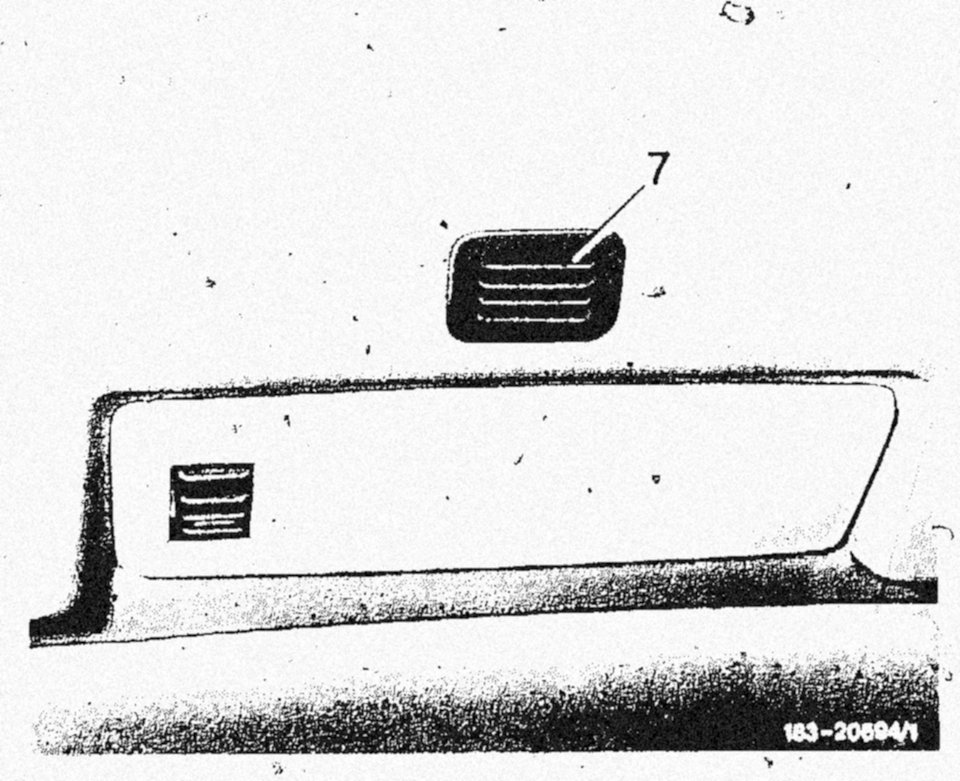

Layout Of In-Car Temperature Sensor In Roof Frame Lining






7 In-car temperature sensor (starting 07/81)

The in-car temperature sensor (7) is located under a grille at top in instrument panel or at top in roof frame lining. The sensor feels the in-car temperature and transmits that temperature to the electronic switching gear (9) to balance the temperature as set.

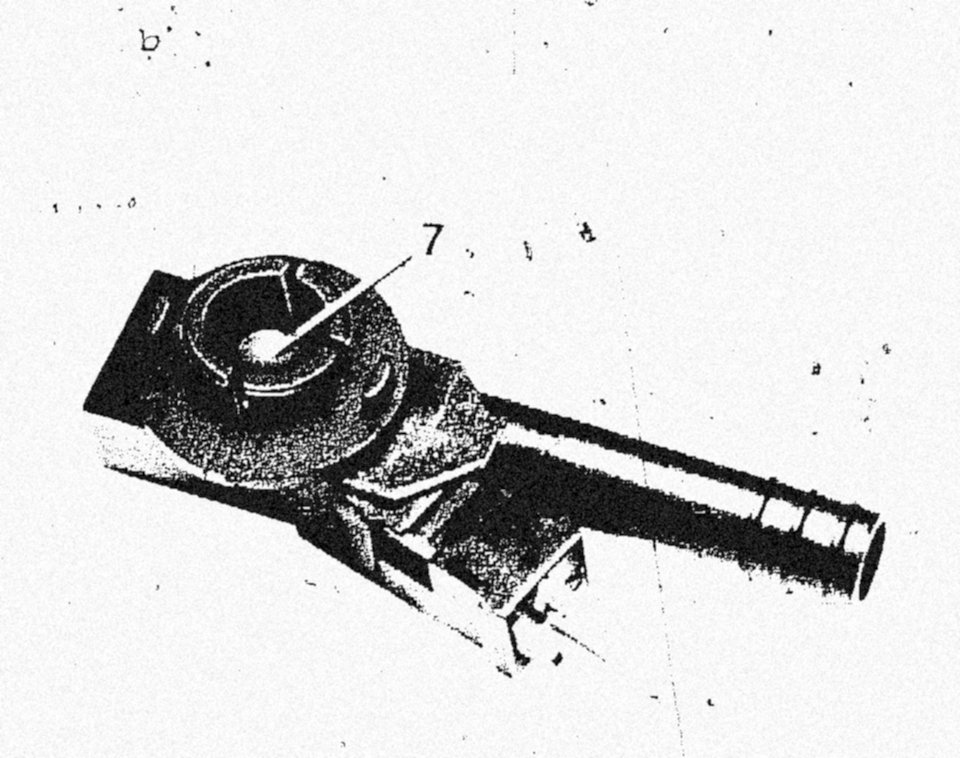

7 In-car temperature sensor (up to 06/81)

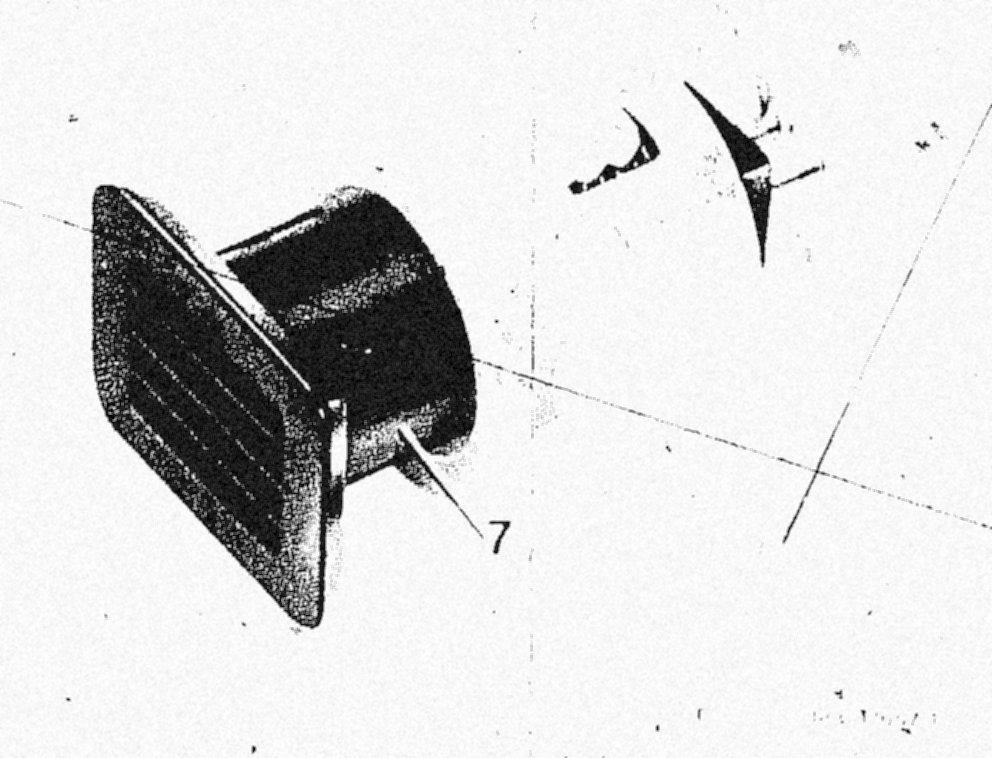

7 In-car temperature sensor (starting 07/81)

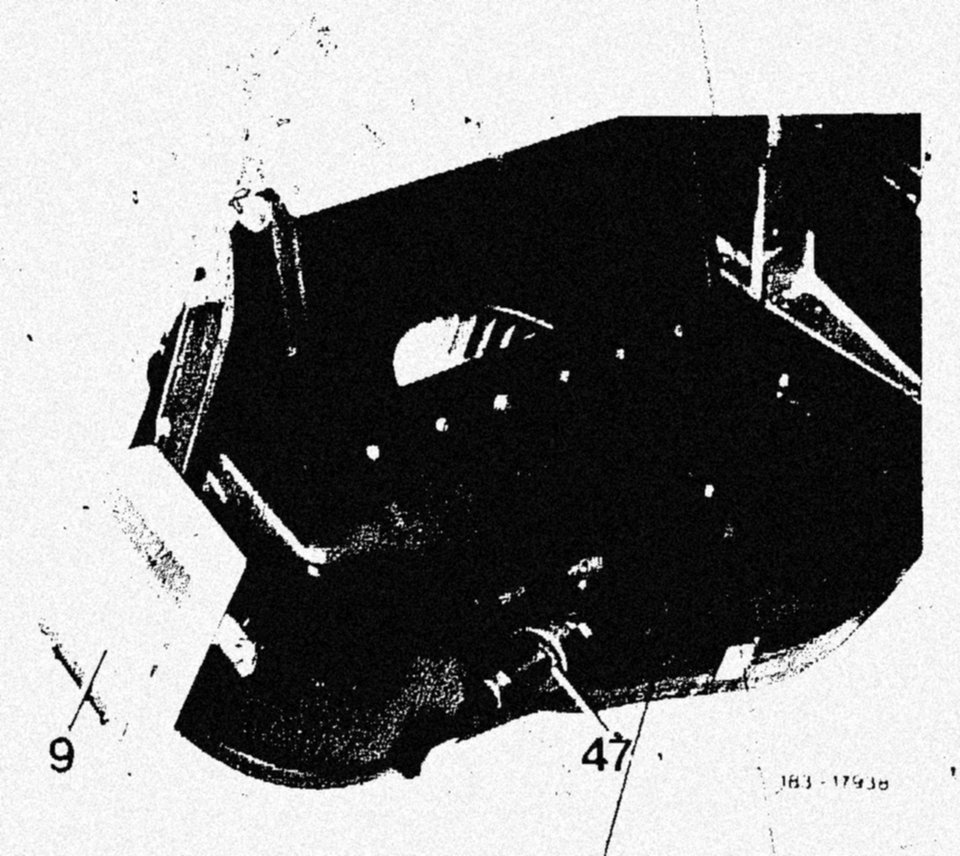

An air jet (47) attached to blower housing will draw air from interior of vehicle by way of the in-car temperature sensor while the blower is running. As a result, the response period of the sensor is shortened and the control accuracy is increased.

The temperature sensor (6) for heat exchanger is located in housing for heat exchanger and transmits the respective outgoing air temperature from heat exchanger to electronic switchgear.






9 Electronic switchgear for temperature control
47 Air jet

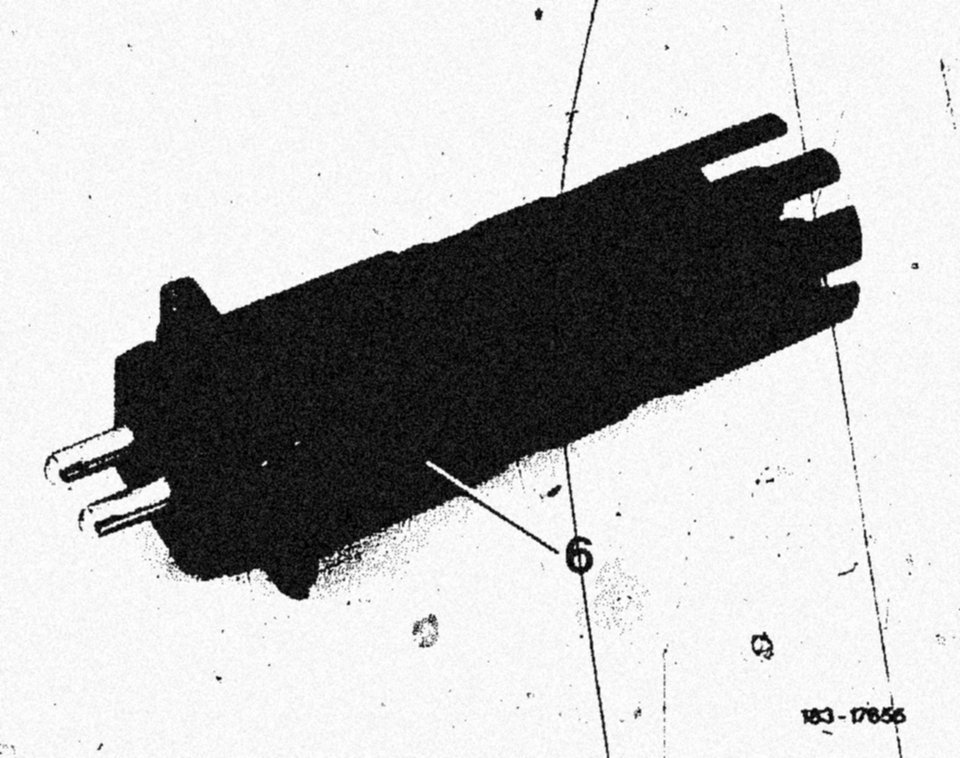

6 Temperature sensor for heat exchanger (up to 12/80)

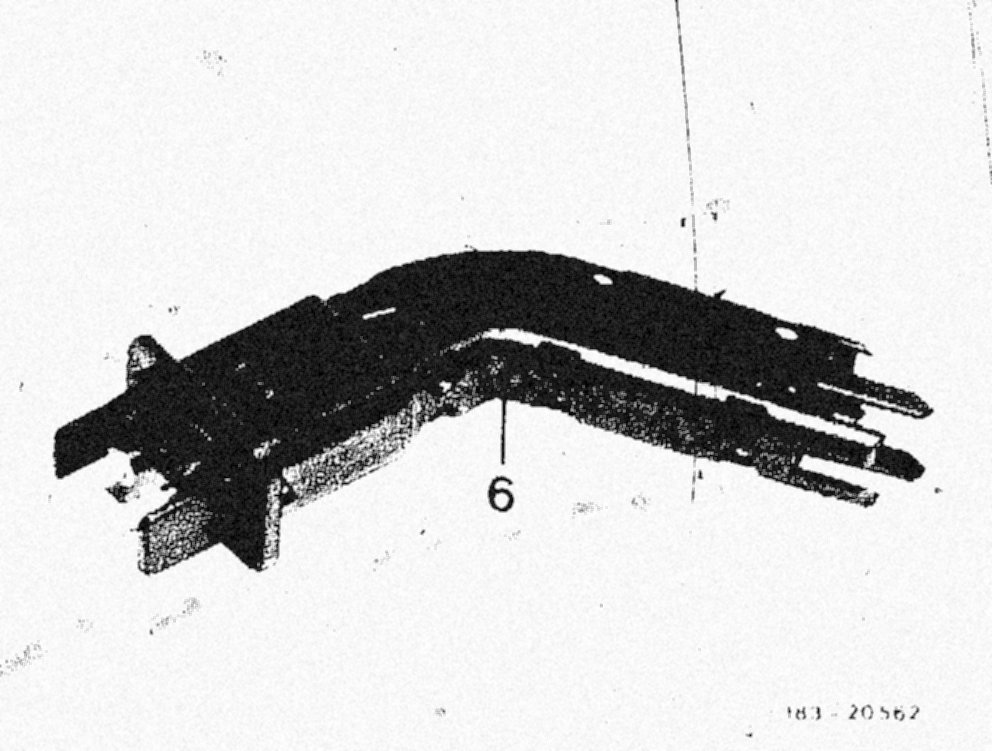

6 Temperature sensor for heat exchanger (starting 01/81)

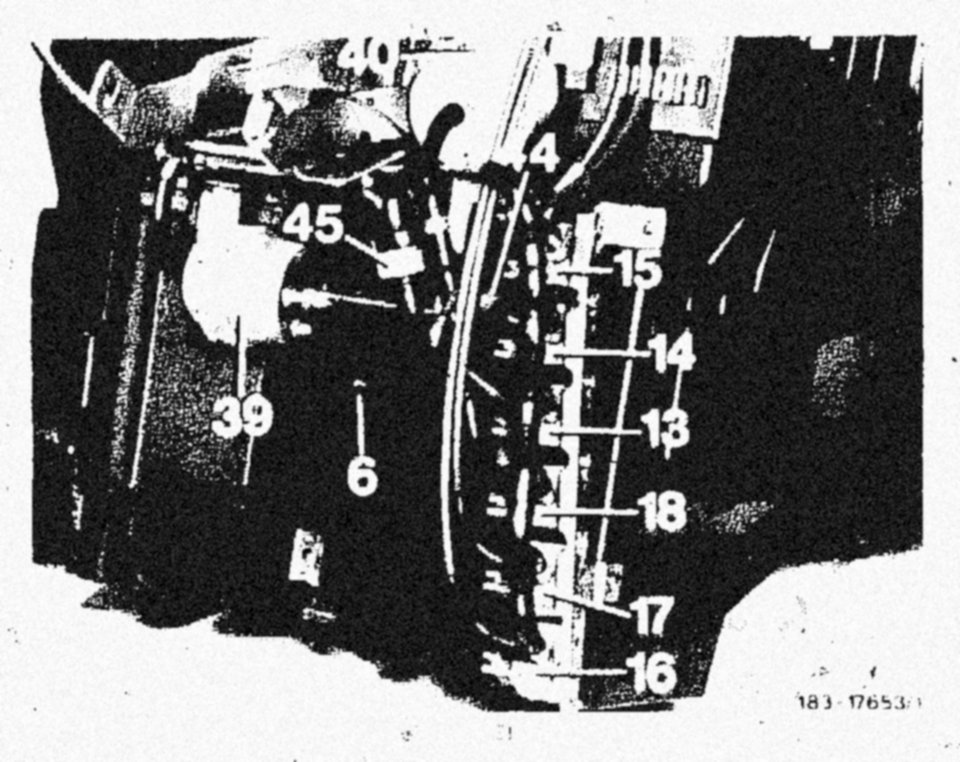

Layout of temperature sensor (6) for heat exchanger
