Test 1




TEST 1:

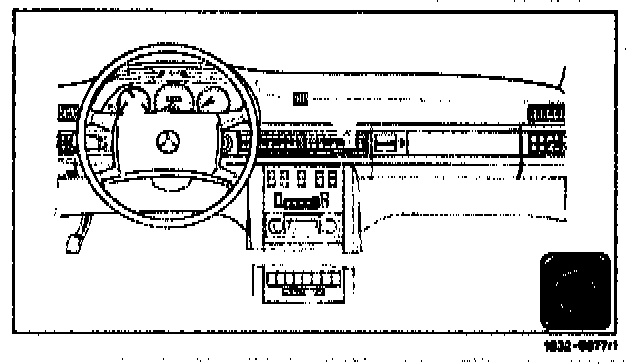

Selector dial Function button Blower
22 °C "e" "AUTOM"

- Monovalve closed (+ and - are connected).
- Compressor switched off.
- Main air flap closed.
- Blower not running.
The electronic system is ready for operation.

Refer to vacuum function diagram 5, and for all additional tests also to electric wiring diagrams.






Air Distribution

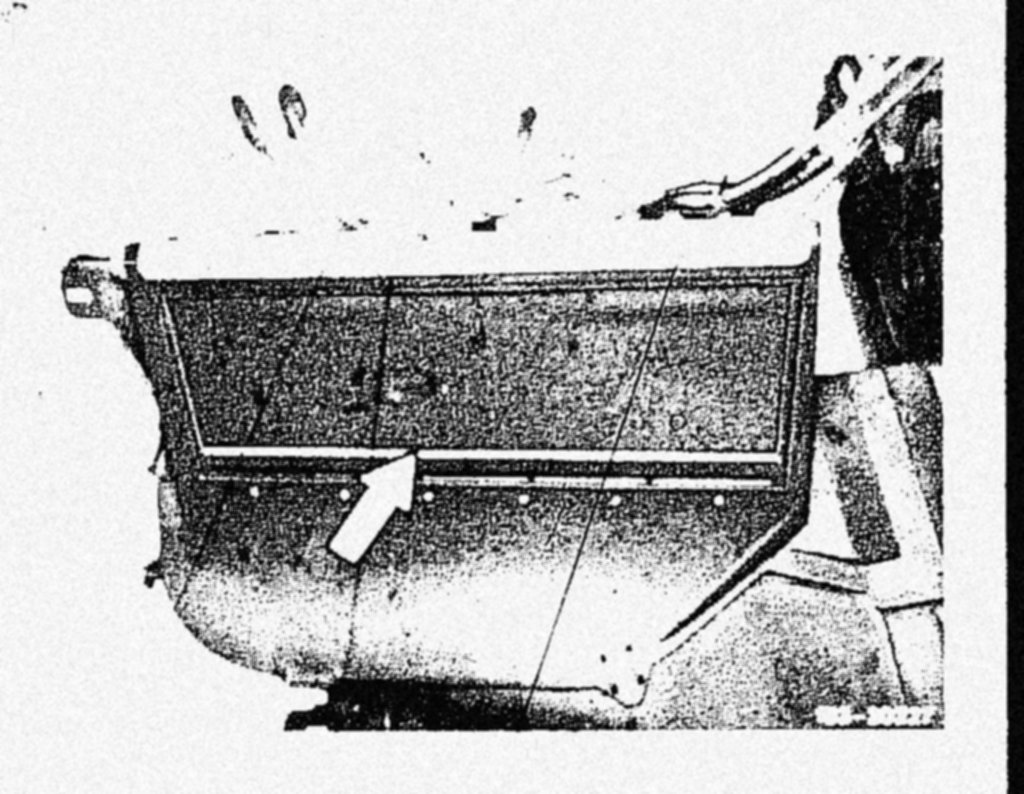

Main air flap closed (no fresh air supply)
