Test 10




Test 10:

Selector dial Function button Blower
At will "a" At will

- Blower running at max. speed (6th stage).
- Monovalve open (not - connected).
- Recirculating pump running.
- Compressor switched on at outside temperatures >4°C.
- Main air flap open (fresh air).
Also refer to vacuum function diagram 1.

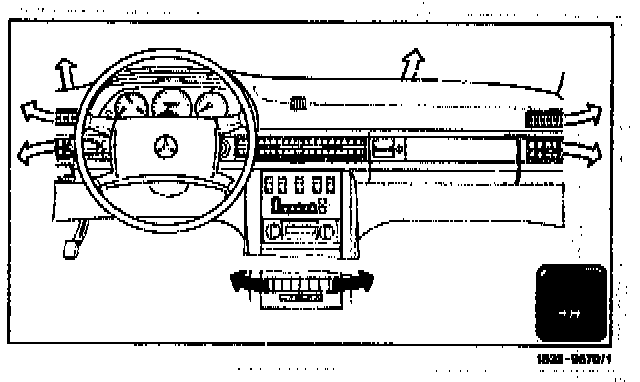

Air distribution

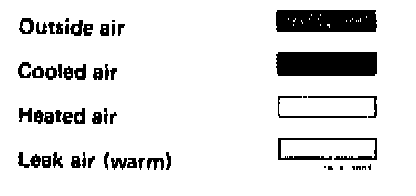

Air conditions
