Test 12




Test 12:

Selector dial Function button Blower
22 °C "e" "g"

- Monovalve closed (+ and - connected).
- Recirculating pump not running.
- Compressor not switched on.
- Main air flap closed.
- Blower not running.

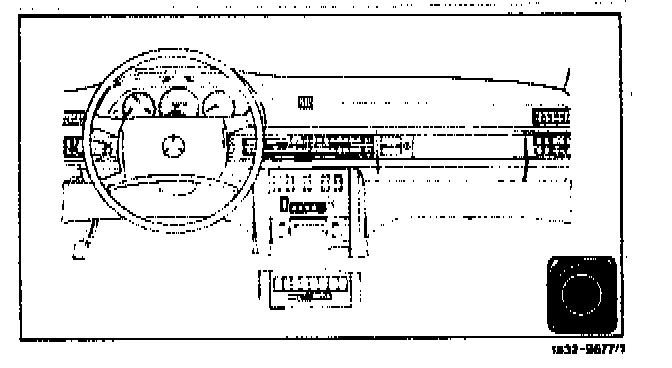

Air distribution
