Test 13




Test 13:

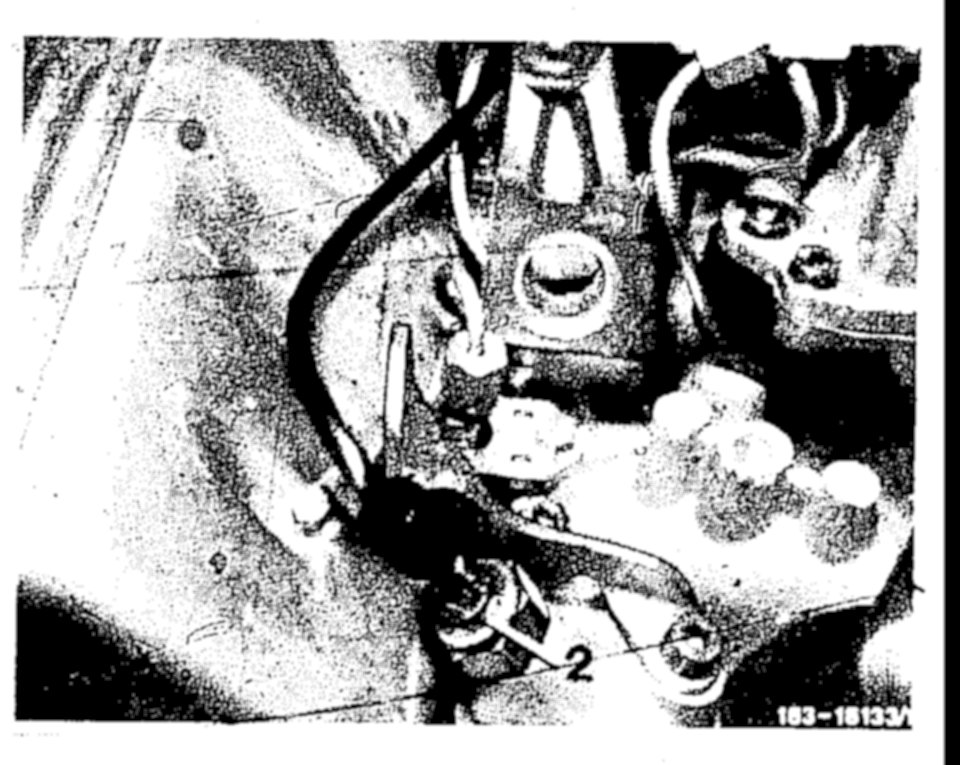

Pull coupling from cold engine lock (2).

Selector dial Function button Blower
MAX "c" "g"

- Main air flap closed.
- Blower not running.

Do not yet plug-on coupling of cold engine lock.
