Test 2

Test 2:

Selector dial Function button Blower
22 °C "b" "AUTOM"

Establish condition "mode change" (overlap) by turning temperature dial slowly in upward or downward direction until footwell flaps and center nozzles are open.
- Monovalve cycling (every 4 to 5 seconds). At temperatures >25° refer to "Notes: 3." as described at the beginning of this information.
- Compressor switched on.
- Main air flap open (fresh air).
- Blower starts after approx. 10 seconds.
- Recirculating pump running.

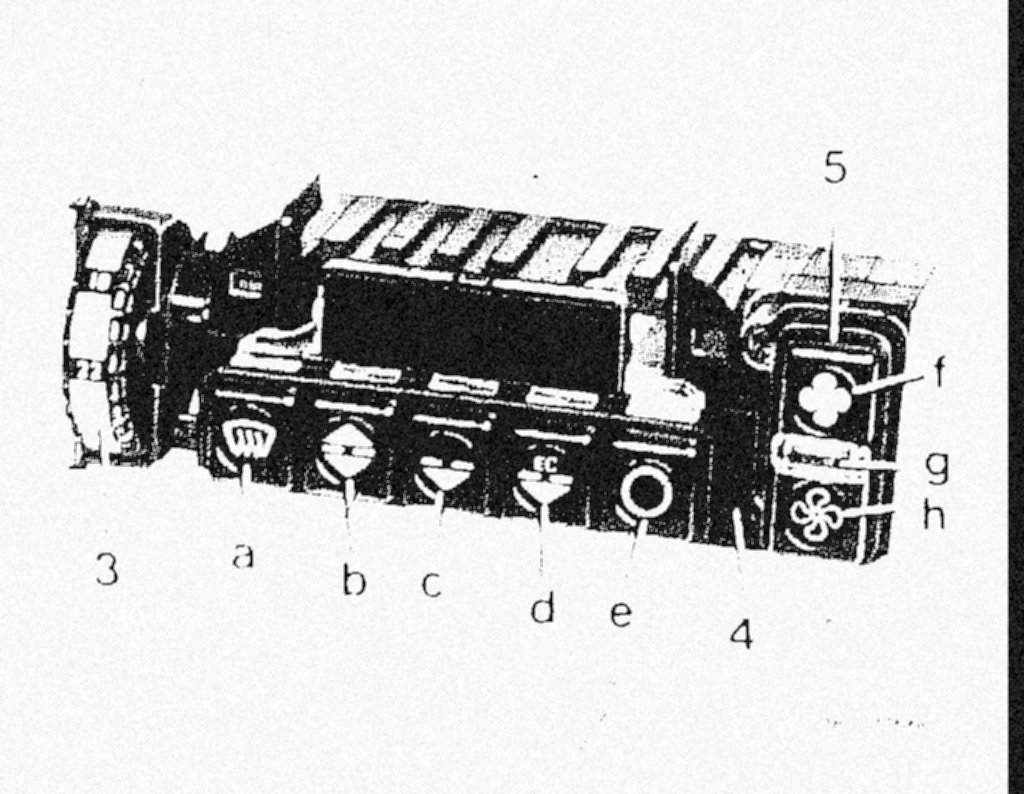

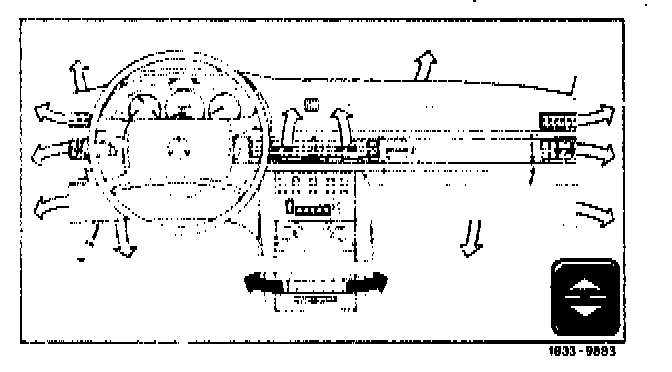

Air Distribution






Control unit
3 Temperature dial
5 Blower switch
a-e Function selection buttons
f Max. blower stag. (6th stage)
g Automatic blower (2nd - 5th stage)
h Minimum blower stage (1st stage)
