Test 5








Test 5:

Selector dial Function button Blower
MIN(engaged) "c" "h"

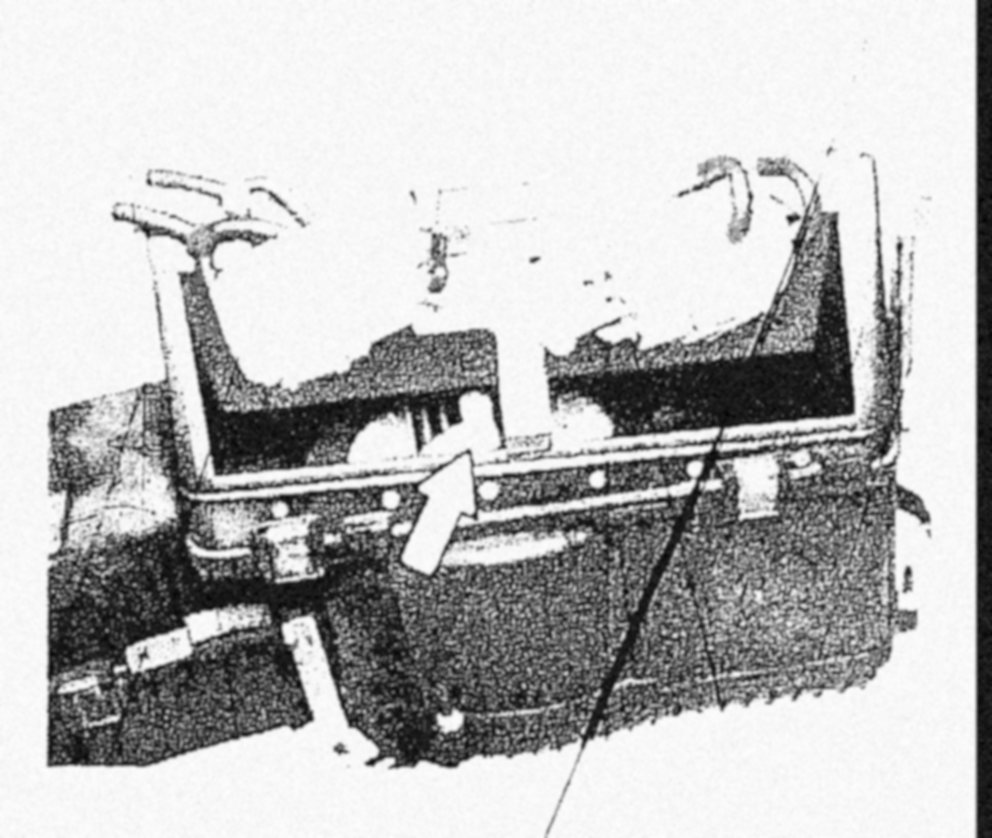

- Diverter flap open.
- Monovalve cloud (+ and - are connected).
- Recirculating pump not running.
- Main air flap in position D, recirculated air (20% fresh air, 80% recirculated air).
- Blower running (4 V or 1st stage).
Also refer to vacuum function diagram 3b.






Air distribution






Air conditions
