Test 6

Test 6:

Selector dial Function button Blower
22 °C "d" "AUTOM"

Set up condition "mode change" (overlap) by slowly turning temperature dial in upward or downward direction until footwell flaps and center nozzles are opened. Wait until blower has switched to 5 V or 2nd stage.

5 V on blower = preparation for next test!

- Monovalve cycling (every 4 to 5 seconds).
- Compressor switched on.
- Main air flap open (fresh air).
- Recirculating pump running.

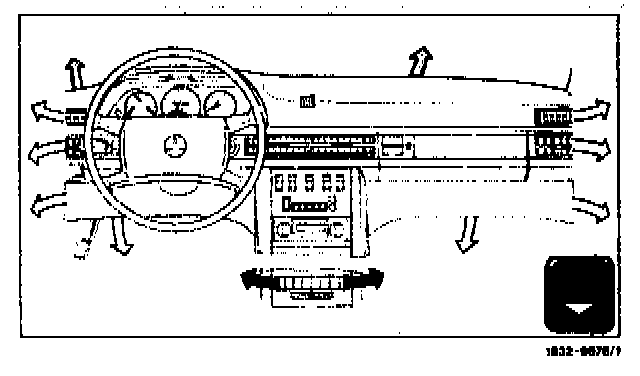

Air Distribution






Air conditions
