Blower Motor Without Function In Any Operating Mode

COMPLAINT:
Blower motor without function in any operating mode.

Cause/Remedy:
a) Fuse blown.
Renew fuse, eliminate short, if applicable.
b) Blower motor or pre-resistor group defective.
Test pre-resistor group or blower motor and renew, if required.
c) Blower switch or control unit defective. Renew blower switch or control unit, if required.

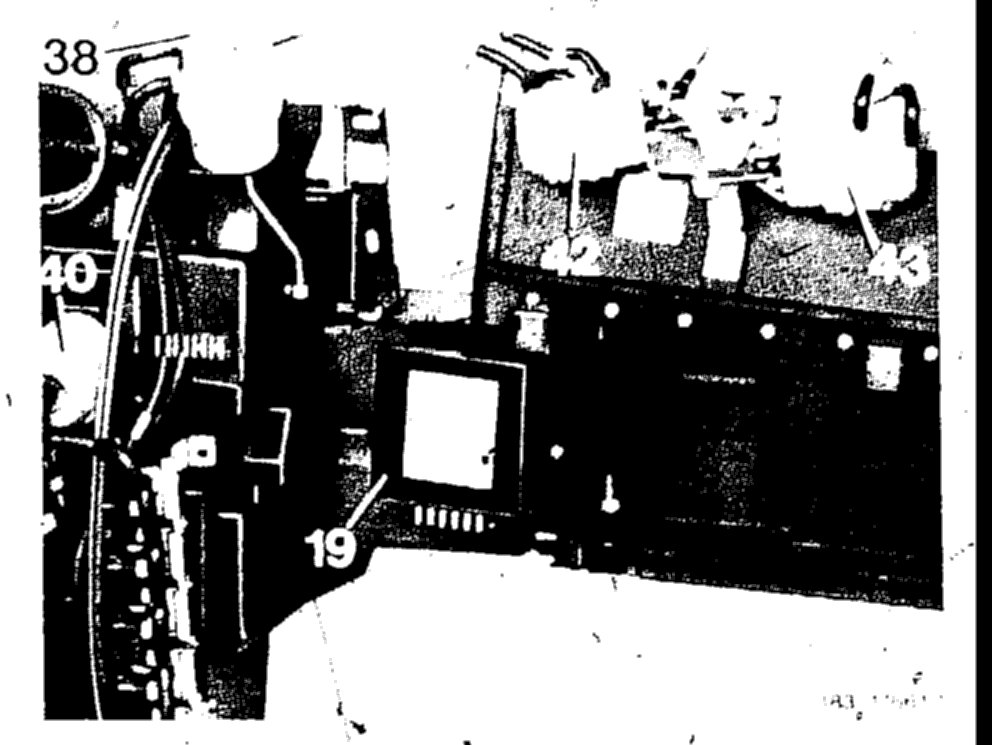

d) Switching unit for blower control (19) defective.
Renew switching unit, if required.
