Fuel Filter: Service and Repair

REPLACING FUEL FILTER

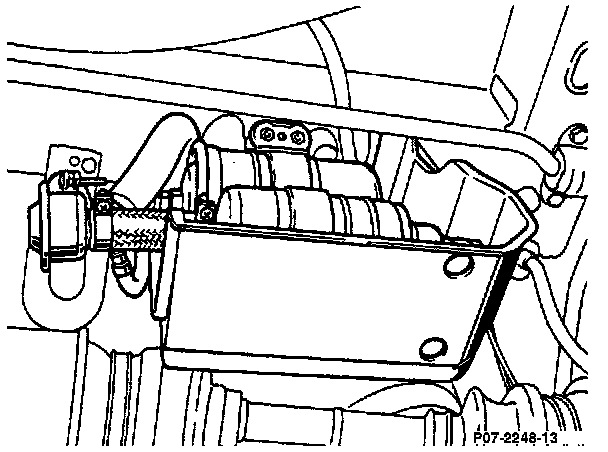

- Remove protective cover.
- Disconnect fuel lines.

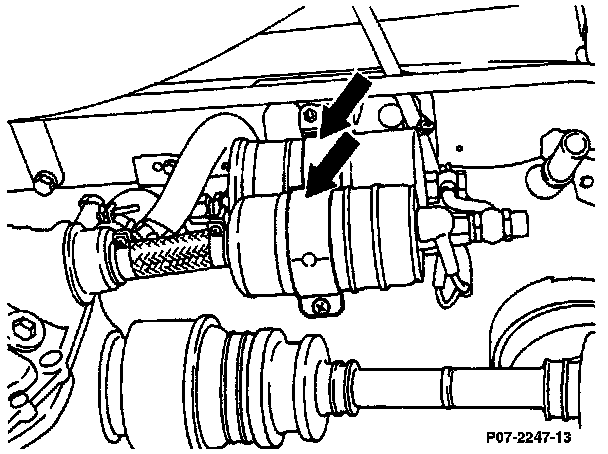

- Loosen mounting screws (arrows) and remove filter.
- Unscrew fitting from old filter and attach to new filter with new seal ring.
- Install new fuel filter in flow direction with plastic sleeve.
- Sleeve should project on both sides of the holder since contact corrosion may occur if there is direct contact with the holder.
- Replace plastic sleeve, if necessary.
- Connect steel line to filter.
- Retighten mounting screws.
- Check for leaks.
