Alignment

With Steel Suspension

Vehicle Alignment

Vehicle Level
Front Axle +31 mm (-15 / +10)
Rear Axle
with Level Control +37 ± 10 mm

NOTE:

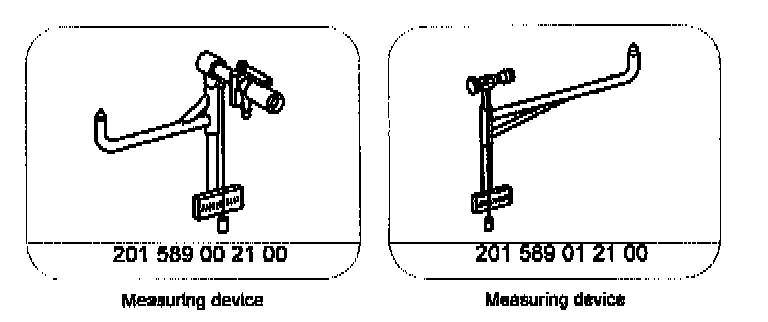

- Use measuring device (01) 201 589 00 21 00 for front axle.

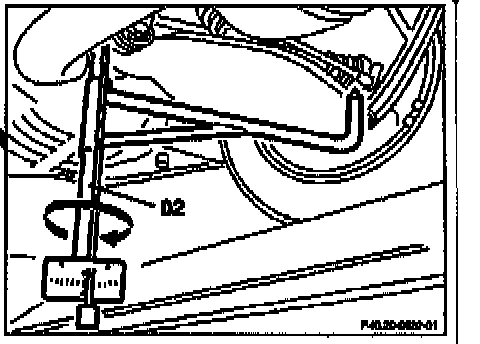

- Use measuring device (02) 201 589 01 21 00 for rear axle.

Front Toe-in 0°25'±10'

Front Camber 0°00' ±20'

Front Caster 10°15'±30'

Rear Toe-in 0°25' (-15' / +10')

Rear Camber [not adjustable]
(at vehicle level) +60 mm 1°15'±30'
+50 mm 0°45'±30'
+40 mm 0°15'±30'
+30 mm -0°15'±30'
+20 mm -0°45'±30'
+10 mm -1°15'±30'
0 mm -1°45'±30'
-10 mm -2°15'±30'
-20 mm -2°45'±30'
