Mirrors: Service and Repair

Removal and installation of outside rear view mirror

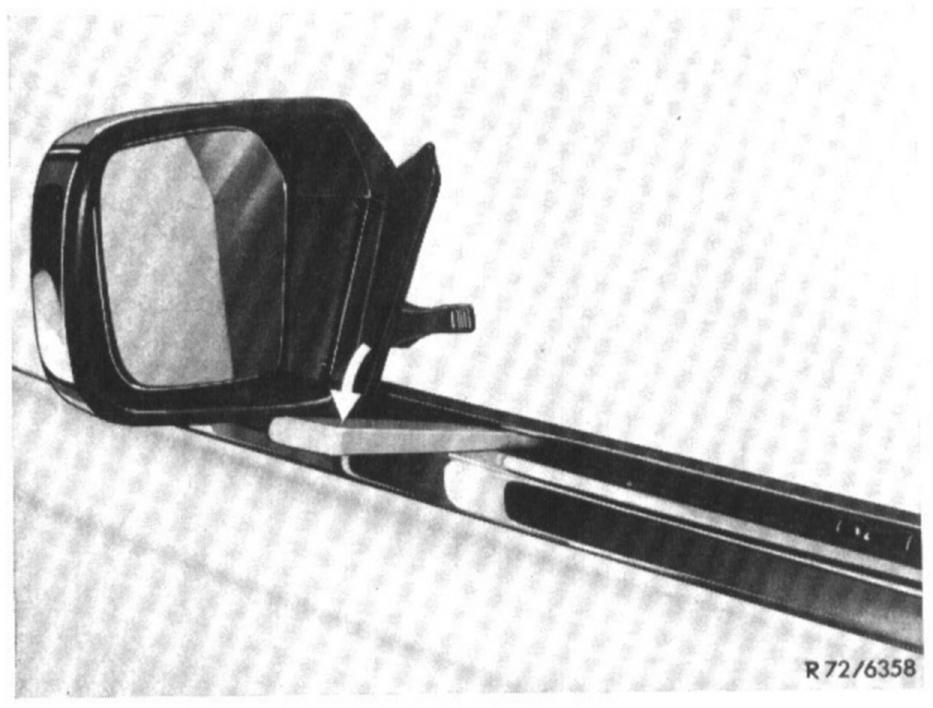

Note: If outside mirror changes its position by itself, remove mirror, lift rubber cover and tighten clamping screw on adjusting mechanism as required.

Removal

Mirror glass

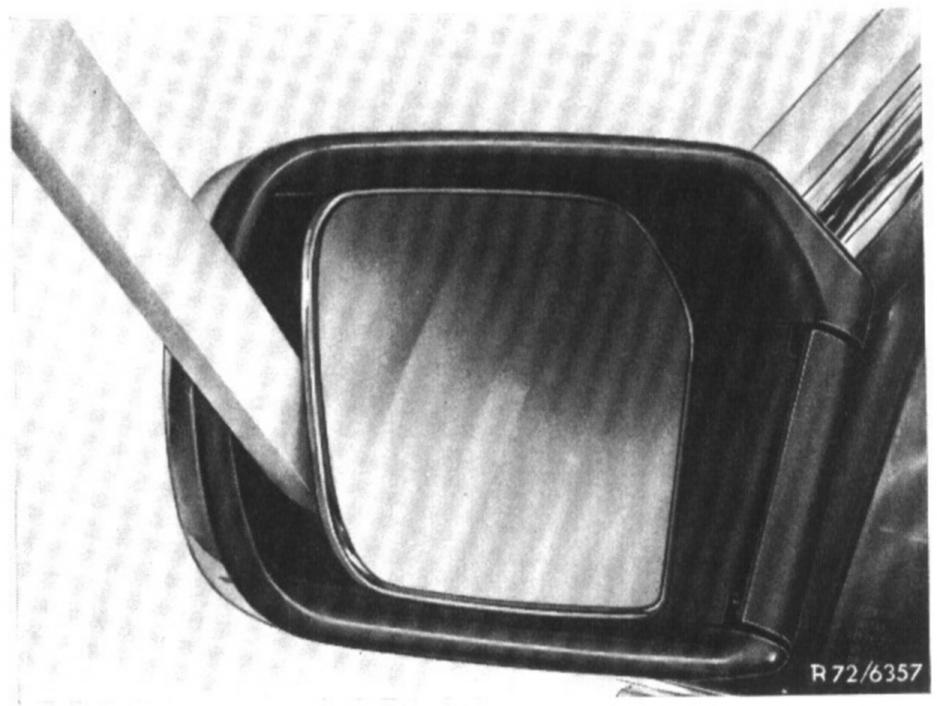

1. Remove glass from ball socket by means of a plastic wedge and pull out laterally.

Complete outside mirror






2. Disconnect door lining at top from clips.

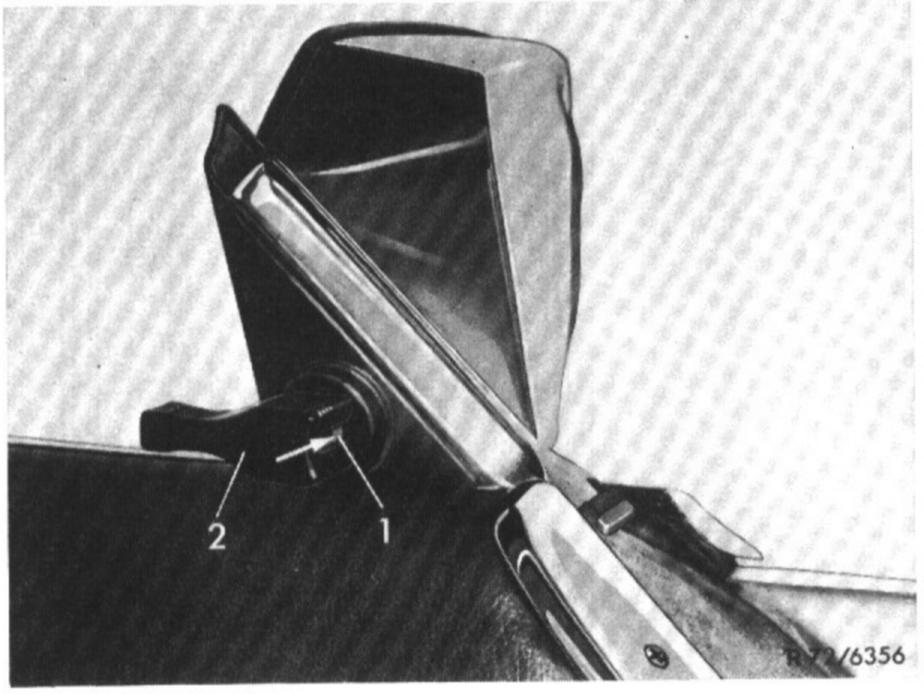

3. Push lock washer (1) out of handle (2) in direction of arrow.






4. Pull off cover plate (3).
5. Unscrew the three screws behiod cover plate.

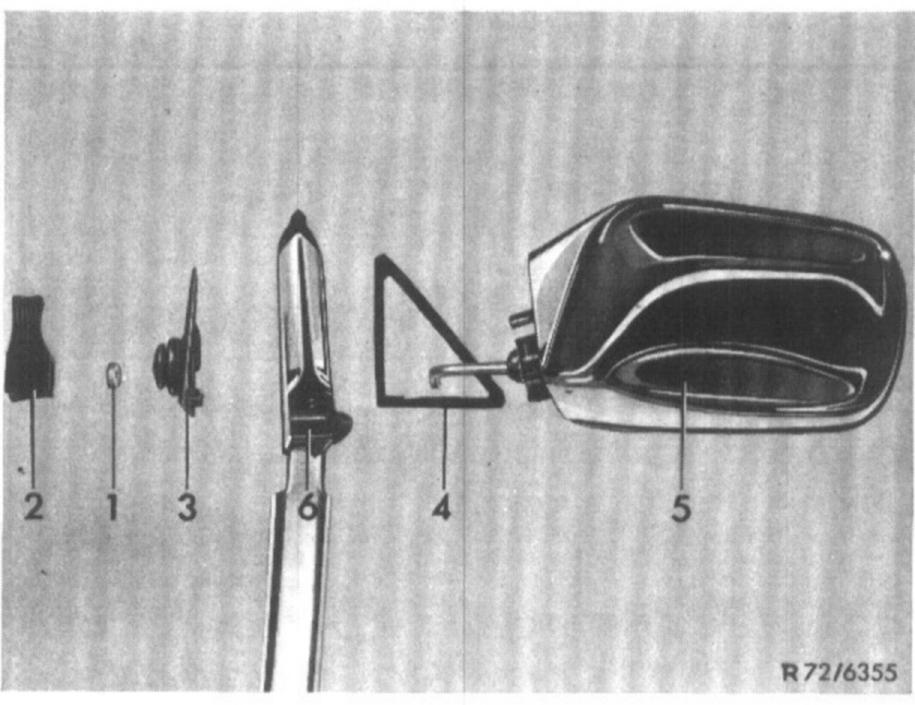

6. Pemove mirror (5) wth intermediate shim (4) from guide holder (6).

Installation

7. For installation proceed vice versa.
