Blower Override Switch: Service and Repair







REMOVAL:
1. Remove control unit.

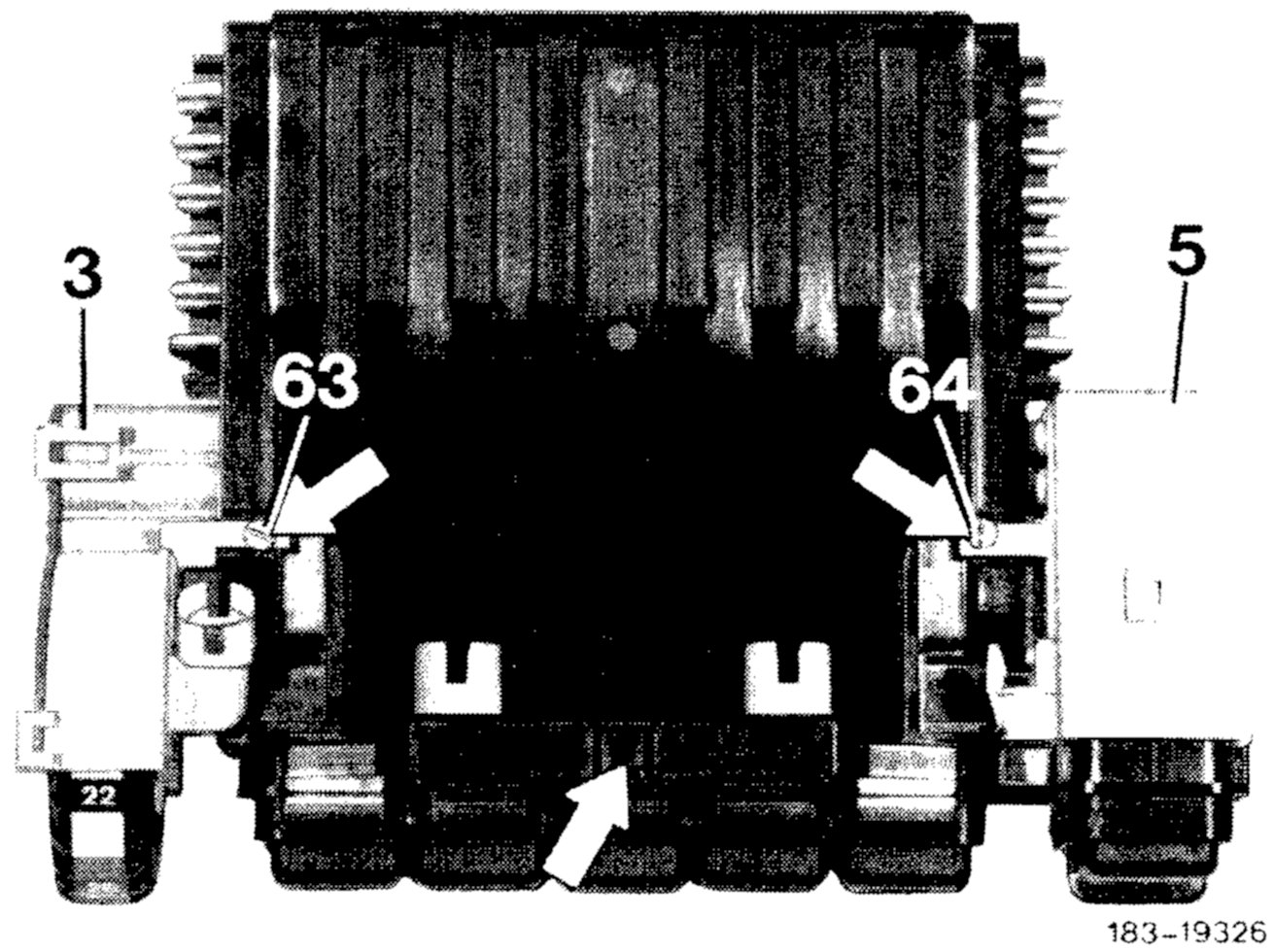

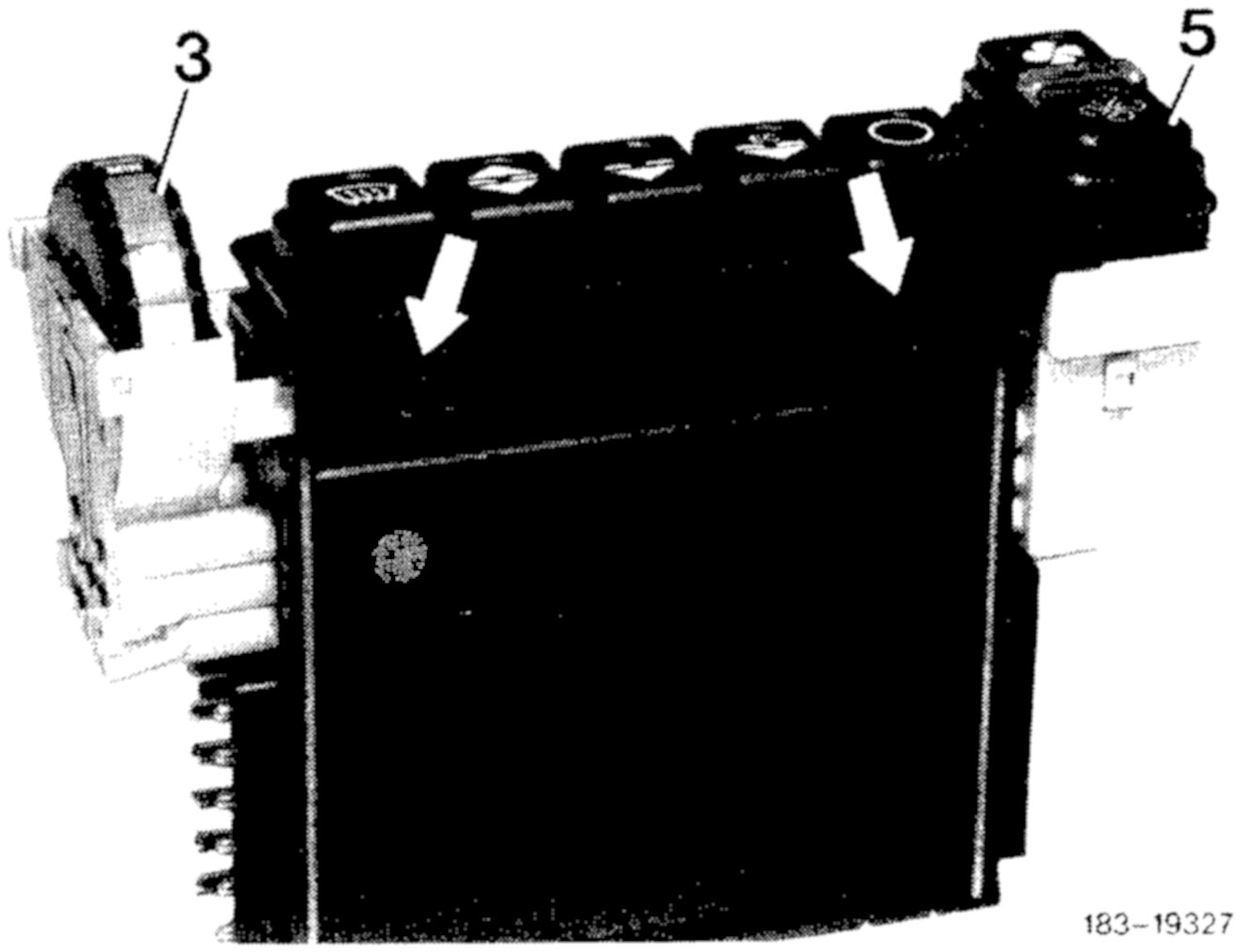

2. Remove plastic cover (refer to arrow) from control unit, starting at blower switch (5), so that pushbuttons are falling out individually. Push out clip (64).
3. Unclip blower switch (5) from control unit and pull off.

INSTALLATION:
1. Press blower switch (5) with clip (64) against control unit, mount plastic cover. Put back push- buttons under slight pressure with a rotating motion (pay attention to sequence and position of symbols).
2. Install control unit.
